Mesh Flooring Panel
Mesh panel in welded or press-locked steel, made to your specs.
Itemized quote within 24 hours · Free drawing review included
Panels made to order
Welded and press-locked lines in-house
Certified & tested
Reports on request, MTC with every order
Samples in 5–7 days
Production in 15–25 working days
FOB Tianjin
Shipped worldwide, EXW / CIF negotiable
Opening selection
Match the Mesh Opening to Traffic and Drainage
A mesh flooring panel is bought for two conditions at once: what crosses the floor, and what must fall through it. Wider openings drain faster and use less steel per square metre; closer openings catch heels, small parts and litter. Start from the traffic row, then check the drainage column.
| Mesh opening | Traffic it carries | Drainage & debris behavior | Typical floor |
|---|---|---|---|
| 11/11 mm, press-locked | Pedestrians in street shoes, heels | Heel-proof; only fines pass — needs washing down | Public concourses, plant aisles, roof gardens |
| 30 mm centers | Foot traffic, handcarts | Good balance — most litter drops through | Mezzanines, operating floors, walkways |
| 40 mm centers | Trolleys and light trucks | Fast spill-through, low clogging | Workshop floors, storage platforms |
| 60 mm centers | Forklift routes, pallet trucks | Maximum open area — rain and wash water run straight off | Yard decks, dock areas, drainage floors |
Between two openings on a mixed floor? Split the order — panels are cut per area, so entrance bays can run 11/11 mm while the process floor runs 40 mm. Send your drawings — we will spec it inside the 24-hour quote.
Specifier checklist
The Panel Is What You Buy: Six Format Decisions
Whether your drawing says mesh flooring panel, steel mesh flooring panel or metal grid floor panel, the factory prices the same purchasable unit. Fix these six decisions and the panel is fully specified — one RFQ line per panel type is enough.
1
Mesh opening
30 / 40 / 60 mm centers on the welded line, or close 11/11 mm press-locked — chosen from the traffic and drainage table above.
2
Panel size
Any width up to 1.25 m and length up to 6 m, cut to your support spacing — fewer joints than stock sheets on odd bays.
3
Bearing bar by duty
20×3 mm for pedestrian panels up to 100×8 mm for forklift loads — height set by span, thickness by wheel load.
4
Plain or serrated top
Plain for shoes and trolleys; serrated for ramps, washdown areas and any floor that runs wet.
5
Banding & load direction
Welded end bands on every exposed edge, plus a marked load direction so panels land with bearing bars across the span.
6
Finish & fixing
Black or hot-dip galvanized (ASTM A123 / ISO 1461), stainless on request — fixing layout and clips included with the order.
For the geometry behind each opening see grating mesh explained →; for choosing the steel grade see steel grating mesh →.
Why factory-direct
Why Buyers Order Mesh Panels Factory-Direct
Factory-direct FOB pricing
Buy factory-direct: FOB pricing on mesh panel from Tianjin — no trading-company margin between your opening schedule and the welding line.
Heavy-duty and anti-slip mesh
Bearing bars to 100×8 mm make a heavy duty mesh panel for forklift floors; serrated tops add anti-slip grip wherever the mesh runs wet.
Samples and small orders welcome
Mesh panel samples ship in 5–7 days and small trial orders are welcome — you check the mesh, welding and finish before a full order.
Applications
Where Mesh Flooring Panels Work
A steel mesh flooring panel earns its place wherever a floor must stay dry, visible and ventilated. Four duty patterns cover most orders — each is just a different opening and bearing bar on the same panel format.
Platform & mezzanine floors
30 mm mesh under foot traffic — light and air pass, litter drops clear of the level below.

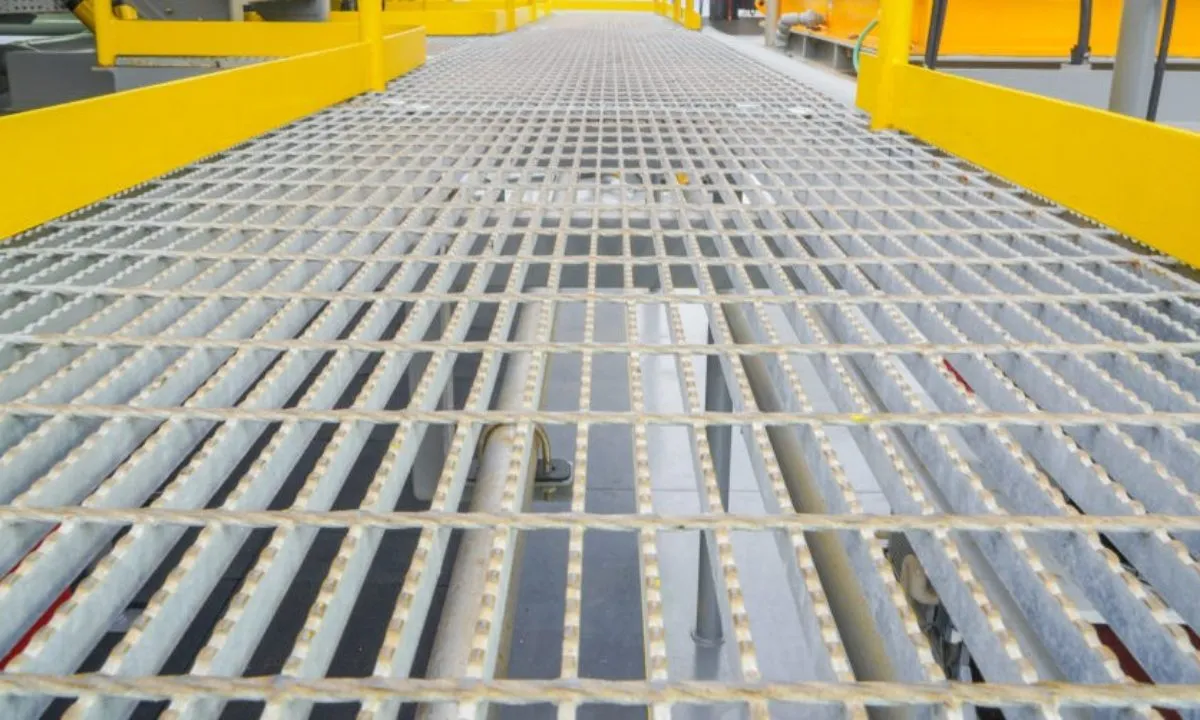

Walkways over wet areas
Serrated mesh panels bolted to stringers — wash water and rain fall through, not underfoot.
Drainage & washdown floors
40 or 60 mm openings over gullies and process floors — spill-through keeps the walking surface dry.
Stair treads & landings
Banded treads and landing panels cut from the same mesh — one order covers floor, stairs and covers.
Specifications
Mesh Flooring Panel Specifications
| Parameter | Range |
|---|---|
| Construction | Welded (W) or press-locked (P), made to order |
| Mesh opening | 30 / 40 / 60 mm centers · close 11/11 mm press-locked |
| Bearing bar | 20×3 mm to 100×8 mm, plain or serrated |
| Panel width | Up to 1.25 m |
| Panel length | Up to 6 m |
| Banding | Welded end bands, cut to drawing |
| Materials | Q235B carbon steel · SS304 / SS316 stainless |
| Surface | Black or hot-dip galvanized (ASTM A123 / ISO 1461) |
| Load direction | Bearing bars across the span, marked on every panel |
| Fixing | Clips and fixing layout included with the order |
Materials & test documents
Every heat of Q235B, SS304 or SS316 enters production with its mill test certificate verified at goods-in — the first of our five QC stages. Mesh panels leave with documentation, not promises:
- Mill test certificate to EN 10204 Type 3.1
- Factory inspection report with every shipment
- Declaration of Conformity prepared per order destination
Standards & compliance
Produced to Recognized Standards — Documents on Request
ANSI / NAAMM MBG 531
Mesh panels produced to MBG 531 reference practice, with weld inspection on our five-stage QC plan.
ASTM A123 / ISO 1461 HDG
Galvanized coating thickness checked by sampling on every galvanized batch before mesh panels are released.
CE & SGS tested
Certified & tested, reports on request — we show documents you can verify, not a certificate wall.
Custom made
Custom Mesh Panels, Cut and Banded to Your Drawings
Send your panel schedule
Areas, mesh opening, panel sizes, bearing bar spec, banding, quantities — or a marked-up floor plan. Drawing review is free.
Quote within 24 hours
Itemized per panel type, FOB Tianjin as standard — EXW or CIF on request. Small trial orders welcome.
Samples in 5–7 days, production in 15–25
Working days after drawing confirmation, hot-dip galvanizing included. Installation drawings and fixing layout ship with the order.
More about custom fabrication →
Get a factory quote in 24 hours — mesh panel, treads & covers in one order. Start here.
Factory-direct quote
Get a Factory Quote
Send floor areas and mesh openings — an itemized quote lands within 24 hours, free drawing review included.
- Tell us mesh opening, panel size, bearing bar, finish and quantity — we confirm every detail in writing
- DoC, MTC EN 10204 3.1 and inspection report with every order
- Factory audits welcome — see the lines before you commit
Prefer to talk? WhatsApp us or sales@dtsteelladder.com
Request your quote
Five fields — we do the rest.
FAQ
Frequently Asked Questions
How do I choose the mesh opening for a flooring panel?
Match the opening to traffic and drainage: 30 mm centers for pedestrian floors, 40 mm for trolley traffic, 60 mm for forklift routes and fast runoff. Where heels or small parts matter, press-locked panels close to 11/11 mm keep the surface heel-proof — we confirm the choice with you inside the 24-hour quote.
What panel formats can I order?
Mesh flooring panels are made to order up to 1.25 m wide and 6 m long, with bearing bars from 20×3 mm to 100×8 mm, plain or serrated tops and welded banding. Send full panel drawings or a simple cutting list — both run on the same in-house welded and press-locked lines.
What is the lead time, and can I start with a sample panel?
Samples ship in 5–7 working days and mass production runs 15–25 working days after drawing confirmation, hot-dip galvanizing included. Small trial orders are welcome, and every quote is itemized per m² or per ton — we do not publish a fixed price list.
