Factory-direct steel gratings & stair treads, shipped worldwide
SS Grating
SS304 & SS316 stainless steel grating for corrosive and sanitary use.
Itemized quote within 24 hours · mill test certificates (EN 10204 Type 3.1) with every shipment
SS304 and SS316 lines
Both grades, welded or press-locked construction
Certified & tested
Reports on request, MTC with every order
Samples in 5–7 days
Production in 15–25 working days
FOB Tianjin
Shipped worldwide, EXW / CIF negotiable
Steel grating material comparison
Carbon Steel, HDG, SS304 or SS316?
Material choice follows the environment. This page anchors the stainless line — the two tinted columns — and every other column links to its own material page. Grade detail lives on SS 304 Grating and 316 Stainless Steel Grating.
| Dimension | Carbon Steel Q235B | Hot-Dip Galvanized | SS304This line | SS316This line |
|---|---|---|---|---|
| Corrosion resistance | Needs a coating to resist rust | Zinc protects until the coating is damaged | Corrosion-resistant without any coating | Adds chloride resistance for salt service |
| Typical environment | Dry indoor platforms, warehouse floors | Outdoor walkways, trench covers, municipal drainage | Food plants, washdown areas, fresh-water duty | Marine, dock, coastal and chemical exposure |
| Surface & finish | Black, primed or HDG on request | ASTM A123 / ISO 1461 hot-dip galvanized | Mill finish — no coating required | Mill finish — no coating required |
| Maintenance | Recoat or replace when rust starts | Inspect coating after impact or abrasion | Wash down — no recoating cycle | Wash down — no recoating cycle |
| Relative cost | Baseline of the four | Moderate — coating adds a step | Higher than galvanized steel | Highest — specified for harsh duty |
| At Dengtai | MTC EN 10204 3.1 with every shipment | HDG via certified partner, 2–3 days | Welded or press-locked, custom to drawings | Welded or press-locked, custom to drawings |
Not sure which grade your site needs? Send your drawings — we will spec it inside the 24-hour quote.
Material evidence
Mill Test Certificates (EN 10204 Type 3.1)
We provide mill test certificates (EN 10204 Type 3.1) with every shipment, so the grade on your drawing is the grade in your panel — traceable from the steel mill to the container.
Verified at goods-in
Every SS304 or SS316 heat enters production with its mill certificate checked — the first stage of our five-stage QC plan, before a single bar is cut.
What the certificate states
Grade (SS304 or SS316), heat number and the mill's reported chemical and mechanical values — the document your inspectors and hygiene auditors ask for.
Preview before dispatch
Certificate copies can be previewed before shipment, and every order travels with a Declaration of Conformity plus the factory inspection report. Documents & reports →
Why specify stainless
Why Specifiers Choose SS Grating
SS304 and SS316, one supplier
Both grades across the same panel ranges — 304 stainless grating for general corrosion duty, SS316 for chloride service. Welded for wide spans, press-locked for close mesh.
Corrosion-resistant, coating-free
No paint, no zinc layer to scratch, chip or recoat — stainless grating keeps its surface in washdown, spill and salt-spray zones where coatings fail first.
Custom stainless grating to drawing
Any panel size within our ranges, cut and banded to your drawings. Small trial orders welcome, with free drawing review inside the 24-hour quote.
Duty map
Where Stainless Pays for Itself
Stainless is the higher-cost column in the table above — and the cheapest panel to own wherever water, chemicals or salt reach the floor. A corroded panel must be replaced, re-shipped and reinstalled; a stainless one is specified once. Four zones where that trade pays:
Food & beverage processing
Washdown floors and drainage that survive daily chemicals and water — no coating to contaminate the line.
Chemical & processing plants
Spill zones and plating areas where SS316 resists chlorides that attack zinc in months.
Marine, docks & coastal
Dock platforms, gangways and seaside walkways in permanent salt spray — the classic SS316 duty.
Water treatment & wet plant rooms
Permanently wet floors and pit covers that never dry — where coated steel rusts from the first month.
Specifications
SS Grating Specifications
| Parameter | Range |
|---|---|
| Grades | SS304 / SS316, both with mill test certificates |
| Constructions | Welded or press-locked, same ranges as carbon steel |
| Bearing bar | 20×3 mm to 100×8 mm, plain or serrated |
| Bar spacing | 30 / 40 / 60 mm centers; 11 / 11 mm close mesh press-locked |
| Panel width | Up to 1.25 m |
| Panel length | Up to 6 m |
| Surface | Mill finish — no coating required |
| Custom cutting | Cut and banded to drawings, free drawing review |

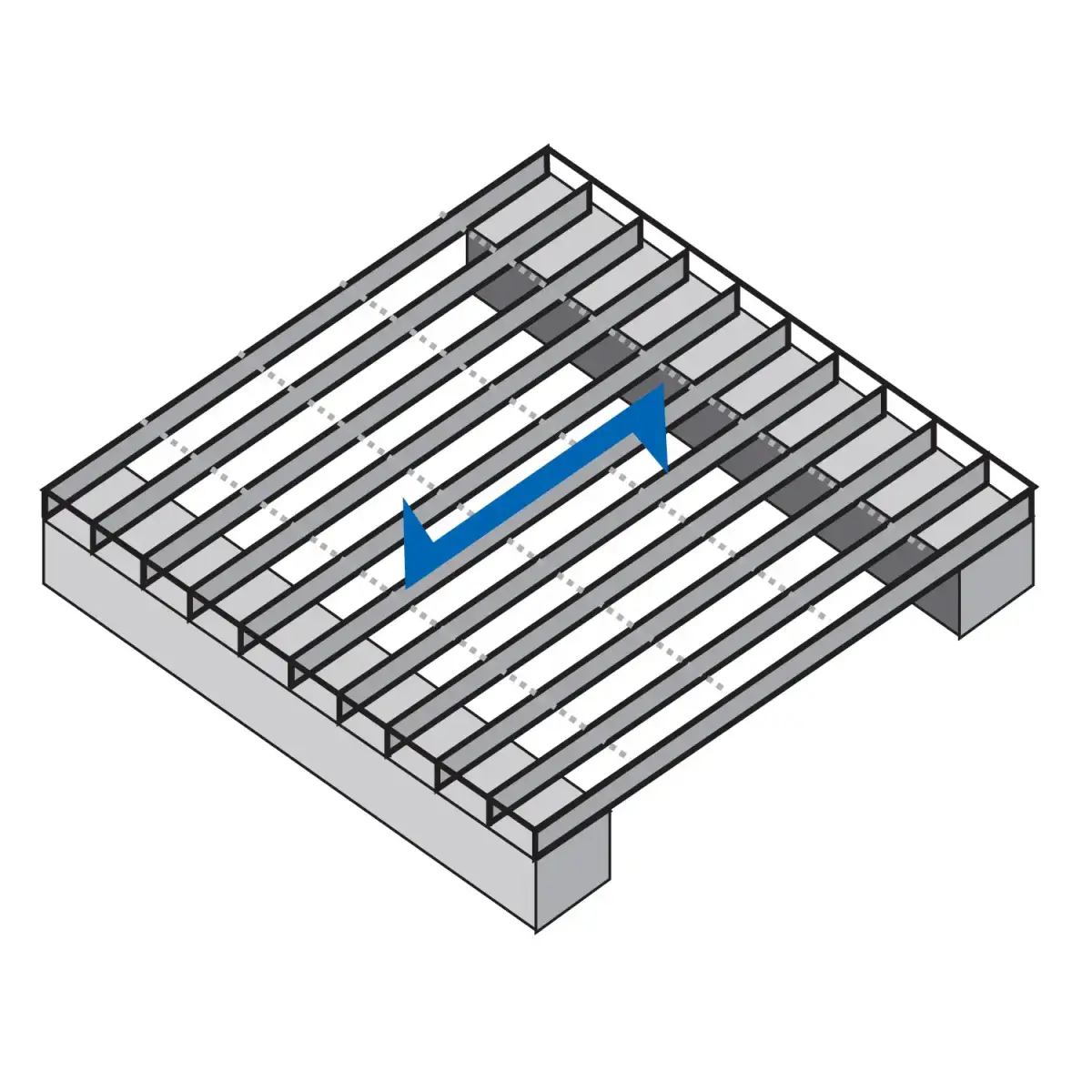

Two constructions, one line
Stainless grating runs through the same two constructions as our carbon steel panels — pick by load and mesh, then pick the grade:
- Welded construction — every intersection forged under pressure, for high loads at wide spans
- Press-locked construction — no weld heat, perfectly flat close mesh for heel-proof floors
- Matching stainless stair treads and drainage covers from the same drawings
Standards & compliance
Produced to Recognized Standards — Documents on Request
ANSI / NAAMM MBG 531
Welded stainless panels produced to MBG 531 reference practice, with weld inspection on our five-stage QC plan.
EN 10204 Type 3.1 evidence
Grade and heat number traceable from the mill certificate to the shipped panel — reports on request, every time.
CE & SGS tested
Certified & tested, reports on request — we show documents you can verify, not a certificate wall.
Custom made
Custom SS Grating, Cut and Banded to Your Drawings
Send your drawing
Panel sizes, load specs, grade (SS304 or SS316), quantities — or just photos and a sketch. Drawing review is free.
Quote within 24 hours
Itemized, FOB Tianjin as standard — EXW or CIF on request. Small trial orders welcome.
Samples in 5–7 days, production in 15–25
Working days after drawing confirmation — stainless needs no galvanizing step, and installation drawings ship with the order.
Factory-direct quote
Get a Factory Quote
Get a factory quote in 24 hours — samples ready in 5–7 working days. Send panel sizes, grade and quantities and we do the rest.
- SS304 and SS316 in welded or press-locked construction
- Mill test certificates (EN 10204 Type 3.1) with every shipment
- Factory audits welcome — see the lines before you commit
Prefer to talk? WhatsApp us or sales@dtsteelladder.com
Request your quote
Five fields — we do the rest.
FAQ
Frequently Asked Questions
Do you provide mill test certificates for SS grating?
Yes. We provide mill test certificates (EN 10204 Type 3.1) with every shipment, stating the grade, the heat number and the mill's reported chemical and mechanical values. Certificate copies can be previewed before dispatch.
SS304 or SS316 — which grade should I choose?
SS304 covers general corrosion duty — food plants, washdown areas and fresh-water exposure. SS316 adds molybdenum for chloride resistance, making it the grade for marine, dock and heavy chemical service. Tell us the environment and we will recommend one in your quote.
Is stainless grating available in both welded and press-locked construction?
Yes. Welded stainless panels follow the same ranges as our carbon steel line — bearing bars from 20×3 mm to 100×8 mm, spacing 30 / 40 / 60 mm, panels up to 1.25 m wide and 6 m long. Press-locked construction reaches close mesh at 11 / 11 mm.
