Stainless Steel Drain Grating
Handles storm water and truck wheels alike. SS Drain Grate built for real sites.
Itemized quote within 24 hours · Free drawing review included
SS304 / SS316 in-house
Stainless line: welded and press-locked constructions
Certified & tested
Reports on request, MTC with every order
Samples in 5–7 days
Production in 15–25 working days
FOB Tianjin
Shipped worldwide, EXW / CIF negotiable
The product line
The Stainless Steel Drain Grating Line, End to End
An SS drain grating order starts with two decisions the line is built around: which construction carries your loads, and which grade survives your water. Both constructions run in the same workshop on the same bar range — the difference is mesh and duty, not quality.
| Construction | Electro-forged welded | Press-locked close mesh |
|---|---|---|
| Forming principle | Every bearing-bar / cross-bar intersection resistance-forged into one panel | Cross bars mechanically pressed into notched bearing bars — no weld heat, no distortion |
| Mesh range | 30 / 40 / 60 mm centers | Down to 11/11 mm close mesh |
| Flow & hygiene | Wide openings — storm water and debris wash straight through | Fine openings that keep heels on top and leave less room for debris to lodge in daily washdown |
| Typical drain duty | Yard trenches, aprons, loading bays and dock edges with wheel loads | Food, dairy and pharma hygiene drains, gully grids and interior floor drains |
| Our lines | In-house — electro-forging line | In-house — press-lock machine |
| Grade map | SS304 stainless | SS316 stainless |
|---|---|---|
| Environment | Indoor drains, kitchens, general washdown floors | Coastal salt spray, marine aprons, harsh cleaning chemicals |
| Why it holds | Good general corrosion resistance where water is fresh or mildly alkaline | Molybdenum-added alloy that stands up to chlorides and chemical washdown |
| Spec range | Identical bars and mesh — the grade choice is about environment, not strength | |
| Material proof | Heat-traceable mill test certificate (EN 10204 Type 3.1) with every shipment | |
Not sure which construction fits your drain? Send your SS grating drain layout — we will match construction, grade and mesh inside the 24-hour quote.
How the line is built
From Stainless Bar to Drain-Ready Panel
1 · Welded construction

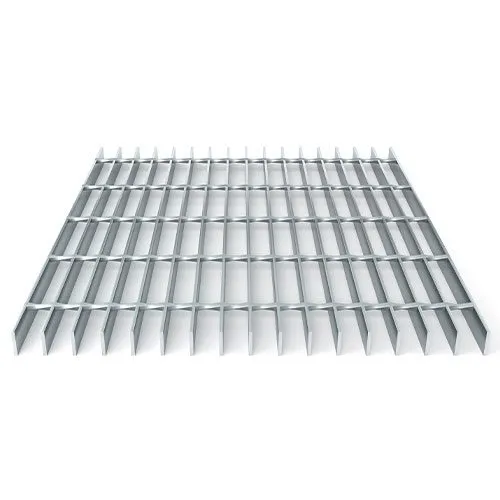

SS304 or SS316 bearing and cross bars are assembled, then every intersection is pressure-forged in one pass — an SS drain grating that behaves as one solid panel under wheels.
2 · Press-locked close mesh
For hygiene drains, cross bars are pressed into notched bars down to 11/11 mm centers. No weld heat means flat panels and uniform openings a hose can clean in one pass.
3 · Finish, band & document
Stainless needs no coating step — panels are cut and banded to drawing, welds dressed, then palletized for export with mill test certificates and the inspection report.
Why specify stainless
Why Specifiers Move Drains to SS Grating
High-flow, heavy-duty panels
Open-mesh SS drain grating sheds storm water fast while heavy bar sections take truck wheels at aprons and trench edges — one grade of steel doing both jobs, in one panel.
SS304 / SS316, one spec
Both grades come off the same line with the same bar and mesh range — you pick the alloy for the environment, and nothing else on the drawing changes.
Any length, factory-direct, with mill certs
Straight from the mill in Shijiazhuang — no middlemen between your layout and the line. Runs cut and banded to any length, mill test certificate with every shipment.
Applications
Where Stainless Drain Grating Earns Its Keep
Galvanized carbon steel covers most civil drainage. Stainless steel drain grating takes over wherever the water never dries, the chemicals are harsh, or the floor is hosed down daily.
Food & beverage plants
Daily hose-down and cleaning chemicals — press-locked 11/11 close mesh over channel runs.
Pharma & clean rooms
Fine-mesh SS grating that drains spills without trapping debris a swab test can find.
Coastal & marine aprons
Salt spray eats coatings — SS316 trench grating at loading bays stays serviceable.
Kitchens & wet interiors
Perpetually wet floors where rust streaks are unacceptable — SS304 floor drain grating.
Specifications
Stainless Steel Drain Grating Specifications
| Parameter | Range |
|---|---|
| Grades | SS304 / SS316 stainless steel |
| Constructions | Electro-forged welded · press-locked close mesh |
| Bearing bar | 20×3 mm to 100×8 mm, plain or serrated |
| Bar spacing | 30 / 40 / 60 mm centers · close mesh to 11/11 mm |
| Panel width | Up to 1.25 m |
| Panel length | Up to 6 m; longer runs made by butting panels |
| Edges & framing | Banded edges standard; frames and covers quoted to drawings |
| Surface | Mill finish stainless — no coating required |
| Documents | Mill test certificate to EN 10204 Type 3.1 with every shipment |
Materials & test documents
Every heat of SS304 or SS316 enters production with its mill test certificate verified at goods-in — the first of our five QC stages. Panels and covers leave with documentation, not promises:
- Mill test certificate to EN 10204 Type 3.1
- Factory inspection report with every shipment
- Declaration of Conformity prepared per order destination
SS304 / SS316 material options → · Welded construction explained →
Standards & compliance
Produced to Recognized Standards — Documents on Request
Grates referenced to EN 124
Drain covers are referenced to EN 124 classes A15–D400 by duty. State your wheel load in the RFQ and we match the bar section to it.
EN 10204 Type 3.1 MTC
Heat-traceable mill test certificates with every shipment — SS304 and SS316 chemistry you can verify, batch by batch.
CE & SGS tested
Certified & tested, reports on request — we show documents you can verify, not a certificate wall.
Custom made
Stainless Drain Grating Made to Spec, in Any Run Length
Send your drain layout
Run lengths, channel widths, wheel or foot load, grade — or just photos and a sketch. Drawing review is free.
Quote within 24 hours
Itemized, FOB Tianjin as standard — EXW or CIF on request. Small trial orders welcome.
Samples in 5–7 days, production in 15–25
Working days after drawing confirmation. Stainless skips the galvanizing step, so panels finish, get inspected and ship with their MTC.
Factory-direct quote
Get a Factory Quote
Send your SS Drain Grate layout for a factory quote. We reply within one business day — construction, grade and mesh confirmed inside the 24-hour itemized quote.
- Five-stage QC, from MTC verification at goods-in to final inspection
- Mill test certificate to EN 10204 Type 3.1 with every shipment
- Factory audits welcome — see the lines before you commit
Prefer to talk? WhatsApp us or sales@dtsteelladder.com
Request your quote
Five fields — we do the rest.
FAQ
Frequently Asked Questions
Welded or press-locked — which stainless steel drain grating do I need?
Choose electro-forged welded grating at 30/40/60 mm centers for open flow and wheel loads at aprons, docks and yard trenches. Choose press-locked close mesh, down to 11/11 mm, where people walk across the drain every day and washdown hygiene matters — the fine openings keep heels on top and leave less room for debris to lodge.
Which grade of stainless drain grating do I need — SS304 or SS316?
SS304 covers indoor drains, kitchens and general washdown. SS316 adds molybdenum for chloride exposure — coastal sites, salt spray and harsh cleaning chemicals. Both grades run on the same bar and mesh range, so the choice is about environment, not strength.
What documents and lead times come with an SS drain grating order?
Every shipment carries a mill test certificate to EN 10204 Type 3.1, a factory inspection report and a Declaration of Conformity prepared for your destination. Samples ship in 5–7 working days and production runs 15–25 working days after drawing confirmation.
