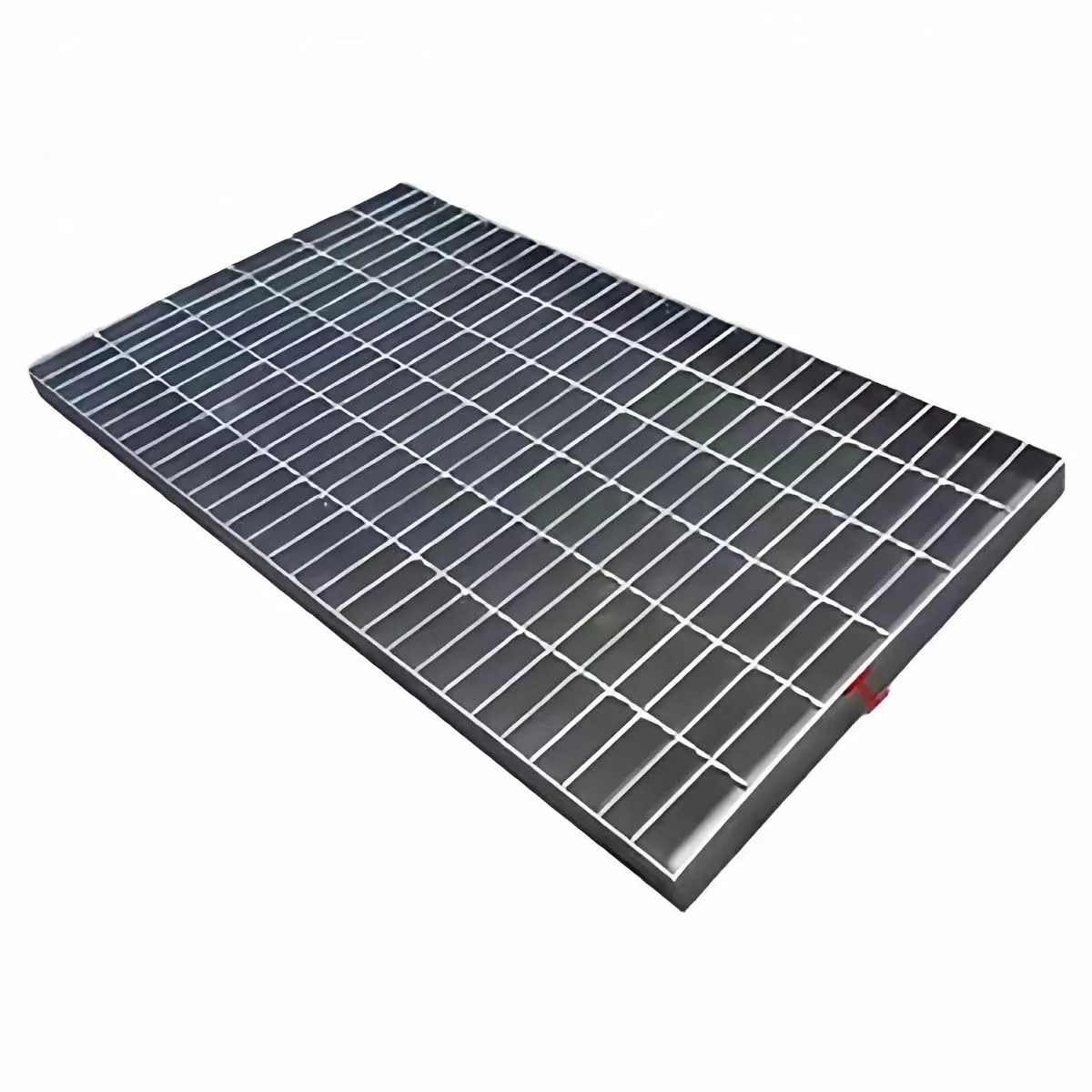

Structural Grating
Structural grating in welded or press-locked steel, made to your specs.
Itemized quote within 24 hours · Free drawing review included
In-house weld & press lines
Structural panels formed on our own electro-forging and press lines
Certified & tested
Reports on request, MTC EN 10204 3.1 with every order
Samples in 5–7 days
Production in 15–25 working days
FOB Tianjin
About 400 km to port, shipped worldwide
Duty comparison
Structural Grating vs Industrial Floor Grating
Every industrial steel grating panel is bearing bars plus cross bars. What separates structural grating is where it sits in the duty spectrum: heavier bars, longer clear spans and load cases that assume equipment, not just footsteps. Here is the honest side-by-side:
| Dimension | Industrial Floor Grating | Structural Grating | Heavy-Duty Welded |
|---|---|---|---|
| Duty target | Pedestrian traffic and light rolling loads | Point loads, equipment weight and heavy spans between supports | Forklift and vehicle traffic at rated span |
| Bearing bar | Usually the lighter end of the 20×3–100×8 mm range | Selected toward the heavy end, up to 100×8 mm | Heavy sections at close centers |
| Span behavior | Shorter spans, more support steel | Longer clear spans with deflection checked for your load case | Wheel loads carried with less deflection |
| Mesh | 30 / 40 / 60 mm centers | 30 / 40 / 60 mm centers, close mesh where heel traffic crosses | Close centers for concentrated loads |
| Typical use | Walkways, trench covers, plant flooring | Mezzanines, equipment platforms, heavy-span walkways, guardrail infill | Docks, driveways and plant floors under wheels |
| Our lines | In-house — welded or press-locked | In-house — welded or press-locked to your specs | In-house — electro-forging line |
Working to a span table? Send your drawings — we will spec the bars inside the 24-hour quote.
How structural panels are built
From Bar Selection to Galvanized Panel
1 · Bars selected for the span
Structural grating starts at bar selection: heavier bearing bars mean longer clear spans and less support steel under your platform. Span and load data for your panels is provided with your quote.
2 · Welded or press-locked forming
The same panel in two constructions: electro-forged for maximum joint strength at wide spans, press-locked for perfectly flat, close-mesh floors. Either way it is cut and banded to your drawings.
3 · Hot-dip galvanizing, ASTM A123
Structural panels go to a certified galvanizing partner near our mill for ASTM A123 / ISO 1461 hot-dip galvanizing — typically 2–3 days, already counted inside your production window.
Why specify structural
Why Engineers Order Structural Grating Factory-Direct
Mill-direct, FOB Tianjin
Industrial grating straight from the mill: itemized FOB Tianjin pricing, EXW or CIF negotiable, small trial orders welcome — with treads and covers quotable in the same order and one loading plan.
Anti-slip under structural loads
Serrated bearing bars bite into wet or oily soles on mezzanine edges and sloped walkways; plain bars keep trolleys and carts rolling smooth. Same structure, your surface choice.
Certified & tested, HDG A123
Structural grating is batch tested on our five-stage QC plan, hot-dip galvanized to ASTM A123, and documented: reports on request, with an MTC to EN 10204 3.1 and a factory inspection report in every shipment.
Applications
Where Structural Grating Carries the Load
Open-mesh industrial steel grating that replaces plate flooring wherever drainage, weight or access matters — specified by span and load case, not by guesswork.

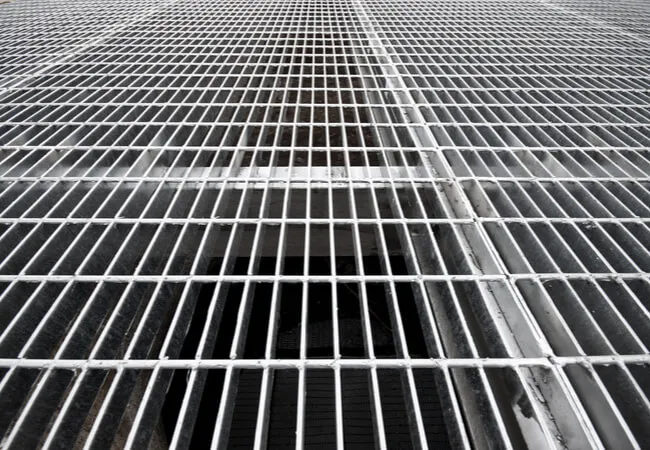

Mezzanines & equipment platforms
Heavy bars spanning between beams — storage floors, machine bases and maintenance platforms that stay open to light and sprinklers.
Heavy-span walkways
Long clear spans with fewer supports — pipe racks, catwalks and access routes over plant floors.
Guardrail infill panels
Rigid open-mesh infill for platforms and walkway edges — wind-transparent, self-draining, hot-dip galvanized.
Industrial floor grating
Plant and workshop flooring that sheds coolant, oil and debris — serrated surface where the floor stays wet.
Specifications
Structural Grating Specifications
| Parameter | Range |
|---|---|
| Bearing bar | 20×3 mm to 100×8 mm — structural duty at the heavy end, plain or serrated |
| Bar spacing | 30 / 40 / 60 mm centers |
| Cross bar | Twisted square or round, per specification |
| Panel width | Up to 1.25 m |
| Panel length | Up to 6 m |
| Materials | Q235B carbon steel · SS304 / SS316 stainless |
| Surface | Black or hot-dip galvanized (ASTM A123 / ISO 1461) |
| Construction | Welded or press-locked, cut and banded to drawings |
Materials, documents & structural data
Every heat of Q235B, SS304 or SS316 enters production with its mill test certificate verified at goods-in — the first of our five QC stages. Span, load and deflection data for your exact panels is provided with your quote, calculated for your dimensions and load case.
- Mill test certificate to EN 10204 Type 3.1
- Factory inspection report with every shipment
- Declaration of Conformity prepared per order destination
Standards & compliance
Produced to MBG 531 — Documents on Request
ANSI / NAAMM MBG 531
Structural grating produced to MBG 531 reference practice, with weld inspection on our five-stage QC plan.
ASTM A123 / ISO 1461 HDG
Galvanized coating thickness checked by sampling on every galvanized batch before panels are released.
CE & SGS tested
Certified & tested, reports on request — we show documents you can verify, not a certificate wall.
Custom made
Structural Panels Made to Your Drawings
Send your drawing
Spans, loads, panel sizes, quantities — or just photos and a sketch. Drawing review is free, and structural data for your panels comes back with the quote.
Quote within 24 hours
Itemized, FOB Tianjin as standard — EXW or CIF on request. Small trial orders welcome; treads and covers quoted in the same order.
Samples in 5–7 days, production in 15–25
Working days after drawing confirmation, hot-dip galvanizing included. Installation drawings and fixing layout ship with the order.
Factory-direct quote
Get a Factory Quote on Structural Grating
Get a factory quote in 24 hours — structural grating, stair treads and covers in one order.
- Span and load data for your panels provided with your quote
- DoC, MTC EN 10204 3.1 and inspection report with every order
- Factory audits welcome — see the lines before you commit
Prefer to talk? WhatsApp us or sales@dtsteelladder.com
Request your quote
Five fields — we do the rest.
FAQ
Structural Grating FAQ
What bearing bar sizes does structural grating use?
Structural grating is specified across the full 20×3 to 100×8 mm bearing-bar range, with structural duty usually selecting the heavy end toward 100×8 mm. Span, load and deflection data for your exact panels is provided with your quote.
Is structural grating produced to a standard?
Yes — panels are produced to ANSI/NAAMM MBG 531 reference practice, with weld inspection on our five-stage QC plan. Certified and tested, reports on request: an MTC to EN 10204 3.1 and a factory inspection report ship with every order.
How fast can I get structural grating samples and production?
Samples ship in 5–7 working days and mass production runs 15–25 working days after drawing confirmation, both including hot-dip galvanizing to ASTM A123. A factory quote lands within 24 hours of your drawing.
