Heavy Duty Steel Floor Grating
Heavy duty welded floor grating, flat and load rated.
Itemized quote within 24 hours · Free floor-drawing review included
In-house weld & press lines
Electro-forging and press-locking under one roof
Certified & tested
Reports on request, MTC with every order
Samples in 5–7 days
Production in 15–25 working days
FOB Tianjin
Shipped worldwide, EXW / CIF negotiable
Floor duty comparison
What Changes When a Floor Carries Forklifts
A floor that carries wheels is specified differently from one that carries feet. Before any load table is opened, four things change: bar sections, bar centers, deflection behavior and the way panel joints are finished.
| Dimension | Standard Floor Grating | Heavy Duty Floor | With Serration Added |
|---|---|---|---|
| Traffic carried | Foot traffic, carts, hand pallet trucks | Forklifts, loaded pallets, drum handling | Same traffic, in busy, wet or washed-down areas |
| Bearing bars | Lower end of the 20×3 – 100×8 mm welded range | Toward the top of the range, up to 100×8 mm sections | Same heavy sections, cut with a serrated top face |
| Bar centers | 30 / 40 / 60 mm as the area allows | Closer centers chosen so wheels never land between bars | Unchanged — serration is a surface option, not a mesh change |
| Deflection feel | Noticeable underfoot on long spans under a loaded pallet truck | Flat and quiet under wheels — span and deflection checked in your quote | Same panel stiffness — only the walking surface changes |
| Panel joints | Banded edges where panels meet open edges | Banded edges recommended at every joint and open edge | Serrated banding available to match the floor surface |
| Finish | Black or hot-dip galvanized | Hot-dip galvanized to ASTM A123 / ISO 1461 as the default | Same HDG default over the serrated surface |
Not sure which floor class your traffic needs? Send your floor drawings — we will spec it inside the 24-hour quote.
Floor build-up
How a Heavy-Duty Grating Floor Is Built Up
1 · Support steel sets the span
Bearing bars run across the supports, never parallel to them. The spacing of your support steel, the wheel load and the deflection you can accept together set the bar section — we check all three in the free drawing review.
2 · Panels, joints and edges

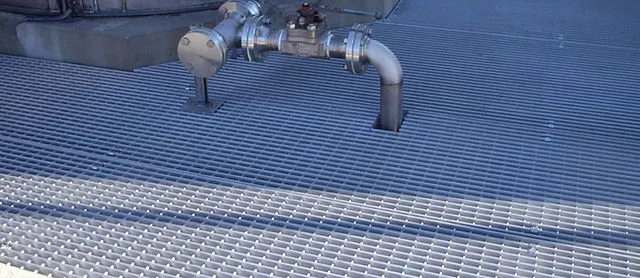

Panels are cut to your floor module and close-banded at every joint and open edge, so wheels roll over a flush seam instead of catching a bare bar end. Clip fixings are supplied alongside the panels for bolted assembly.
3 · Hot-dip galvanizing as default
Plant floors see spills, washdown and traffic — so heavy duty floor panels ship hot-dip galvanized to ASTM A123 / ISO 1461 as standard. Galvanizing runs 2–3 days at a certified partner plant, already counted inside the production window.
Why specify heavy duty floors
Why Plant Floors Specify Heavy Duty Steel Grating
Floor load specs that hold
Every intersection of bearing bar and cross bar is pressure-forged into one solid panel, so wheel loads spread across the floor instead of working a single joint loose. Load tables are provided with your quote, sized to your spans.
Cut to drawings, any quantity
Floor modules cut and banded to your layout — openings, notches and joint positions included. Small trial orders are welcome, and full-container orders are calculated per loading plan.
Samples in 5–7 days, floor lots batch tested
Check the section, the serration and the coating on a real sample before the floor lot runs. Certified & tested, reports on request — floor lots are batch tested on our five-stage QC plan.
Applications
Where Heavy Duty Floor Grating Works
Open mesh that sheds water, oil and debris while carrying wheels all shift — heavy duty welded panels are the working surface of plants that never stop moving.
Plant & warehouse floors
Forklift aisles, production bays and storage zones on support steel.
Docks, ramps & wash pads
Wet, hosed-down traffic zones where serrated surfaces and HDG earn their place.
Mezzanine & platform floors
Upper-level floors over support steel where pallet trucks also travel.
Matching stair treads
Treads in the same bar sections and serration as the floor they serve.
Specifications
Heavy Duty Floor Grating Specifications
| Parameter | Range |
|---|---|
| Bearing bar | 20×3 mm to 100×8 mm, plain or serrated |
| Bar spacing | 30 / 40 / 60 mm centers |
| Cross bar | Twisted square or round, per specification |
| Panel width | Up to 1.25 m |
| Panel length | Up to 6 m |
| Materials | Q235B carbon steel · SS304 / SS316 stainless |
| Surface | Hot-dip galvanized (ASTM A123 / ISO 1461) as standard, black optional |
| Designation | 19W4 class and custom heavy sections |
Materials & test documents
Every heat of Q235B, SS304 or SS316 enters production with its mill test certificate verified at goods-in — the first of our five QC stages. Heavy duty floor lots are batch tested, and panels leave with documentation, not promises:
- Mill test certificate to EN 10204 Type 3.1
- Factory inspection report with every shipment
- Declaration of Conformity prepared per order destination
Standards & compliance
Produced to Recognized Standards — Documents on Request
ANSI / NAAMM MBG 531 & 532
Welded panels produced to MBG 531 reference practice, with the heavy-duty class covered by MBG 532 — weld inspection sits on our five-stage QC plan.
ASTM A123 / ISO 1461 HDG
Galvanized coating thickness checked by sampling on every galvanized batch before floor panels are released.
CE & SGS tested
Certified & tested, reports on request — we show documents you can verify, not a certificate wall.
Custom made
Floor Panels Cut and Banded to Your Drawings
Send your floor layout
Floor dimensions, support spacing, wheel loads, quantities — or just photos and a marked-up sketch. Drawing review is free.
Quote within 24 hours
Itemized, FOB Tianjin as standard — EXW or CIF on request. Small trial orders welcome.
Samples in 5–7 days, production in 15–25
Working days after drawing confirmation, hot-dip galvanizing included. Installation drawings and fixing layout ship with the order.
Factory-direct quote
Get a Factory Quote
Ask for floor grating drawings help — engineers reply within 24 hours with an itemized quote and a sized specification for your spans.
- Five-stage QC, from MTC verification at goods-in to final inspection
- DoC, MTC EN 10204 3.1 and inspection report with every order
- Factory audits welcome — see the lines before you commit
Prefer to talk? WhatsApp us or sales@dtsteelladder.com
Request your quote
Five fields — we do the rest.
FAQ
Frequently Asked Questions
What bearing bars does a forklift floor need?
Heavy-duty floors work toward the top of our welded range — bearing bars from 20×3 mm up to 100×8 mm at 30 / 40 / 60 mm centers. The right section depends on your support spacing and wheel load; send the floor layout and we size it inside the free drawing review that comes with your 24-hour quote.
How far apart can the support steel be under the panels?
Support spacing is calculated, not guessed. Bearing bars must run across the supports, and the span, the wheel load and the deflection you can accept underfoot together set the bar section and centers. We check your framing layout against load tables during drawing review — the tables are provided with your quote, not published as a fixed chart.
Do heavy duty floor panels come serrated and galvanized?
Yes to both. Serrated bearing bars are a running option for busy or wet floors, and hot-dip galvanizing to ASTM A123 / ISO 1461 is the default finish — galvanizing runs 2–3 days at our partner plant and is already counted inside the 15–25 working-day production window.
