Metal Drain Grating
Steel drain grating for trench, driveway and channel projects, made to order.
Itemized quote within 24 hours · Free drawing review included
Welded & press-locked lines
Both grating processes under one roof
Certified & tested
Reports on request, MTC with every order
Samples in 5–7 days
Production in 15–25 working days
FOB Tianjin
Shipped worldwide, EXW / CIF negotiable
The line at a glance
The Four Formats of Metal Drain Grating
This page is the entry point to the whole drainage line. Steel grating for drainage is one family of welded panels cut to four different jobs — pick the format your water path needs, and the format page carries the detailed sizing tables:
| Dimension | Trench grating | Channel grating | Gully grid | Floor drain cover |
|---|---|---|---|---|
| Where it sits | Long trench runs across roads, docks and forecourts | Linear runs along kerbs, aprons and yard edges | Point drainage at gullies, basins and low spots | Single openings, thresholds and washdown floors |
| How water arrives | Concentrated flow along the trench line | Sheet flow shedding off the surface | Water ponding to one collection point | Spill and wash water at floor level |
| Panel logic | Panels in numbered sequence, banded ends | Continuous panels laid end to end | One metal drain grid per pit | One framed cover per opening |
| Load framing | A15–D400 where wheels cross the run | B125–D400 for vehicle crossings | A15–C250 by what parks above it | A15 pedestrian, light trolley traffic |
| Heel-proof option | 11 / 11 mm close mesh on walk-over sections | Close mesh where footpaths cross | Close mesh on precinct gullies | Close mesh is the default ask |
Load classes are referenced to EN 124 — name the class in your quote request and we size the bearing bars to it. Deeper dives: steel trench grating spec tables, the hot-dip galvanized civil-duty build on galvanized channel grating, and stainless steel drain grating for washdown plants.
The core trade-off
Open Area vs Strength in Every Drain Grid
Every drain grating negotiates the same conflict: more opening passes more water, more steel carries more load. Three decisions settle it for your project.
1 · Open area fights strength
Each extra millimeter of opening passes more peak flow but removes steel from the load path. 30 / 40 / 60 mm centers trade flow against bar count; 11 / 11 mm press-locked close mesh nearly closes the openings for heels and litter at the cost of open area.
2 · Traffic sets the bars
A grate under a pedestrian precinct and one under a truck crossing differ only in geometry: bearing bars step from 20×3 mm up to 100×8 mm and spans shorten as wheels get heavier. Name the class and the axle — we size to it.
3 · Environment sets the material
Standing water, de-icing salt and freeze–thaw rule outdoor duty: Q235B carbon steel goes out hot-dip galvanized to ASTM A123 / ISO 1461. Washdown chemicals, food hygiene and chloride exposure point to SS304 or SS316 instead.
Why order from the mill
Why Specifiers Order Metal Drain Grating Factory-Direct
Drain grating sized to EN 124 load classes
From A15 pedestrian precincts to D400 truck crossings, classes referenced to EN 124 — you name the duty, we select the bar height and spacing from the 20×3 – 100×8 mm range we build every day.
Custom lengths and banded edges
Any run length, cut to your trench or channel dimensions, with banded drain grating edges so panels never rock loose under traffic. Drawing review is free inside the 24-hour quote.
Factory drain grating, one order
Project pricing factory-direct, FOB from Tianjin — drain grating, stair treads and covers shipped in one order, small trial orders welcome so you can test the fit before the full run.
Applications
Where Metal Drain Grating Works
The same welded panel family serves four drainage duties — only the bar height, spacing and finish change from one job to the next.

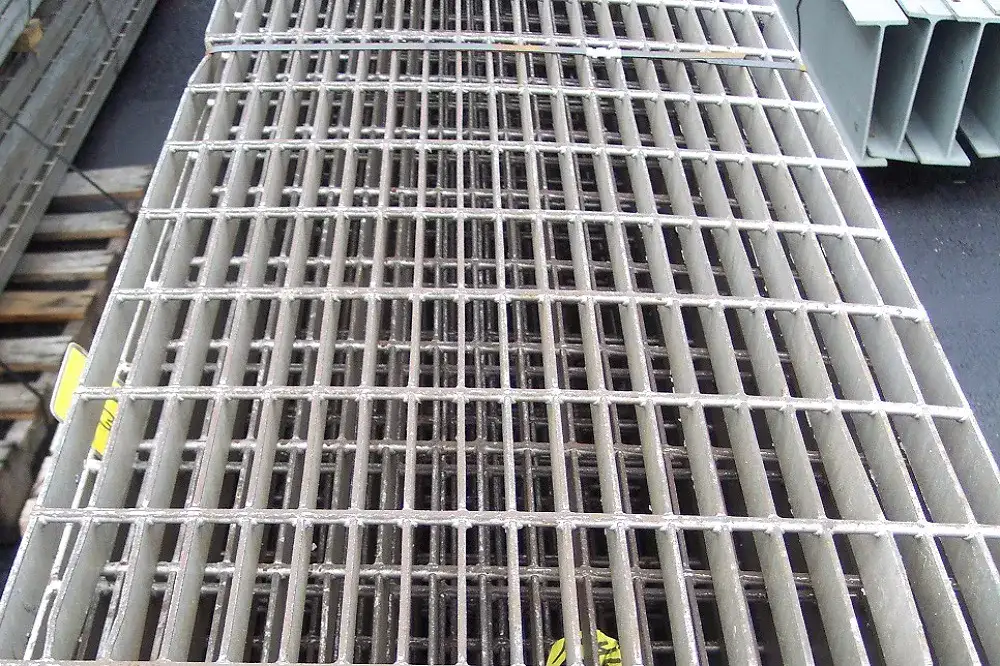

Trench & culvert runs
Sequenced panels for trench drains and culvert headwalls, 60 mm openings for peak flow.
Driveways & vehicle crossings
Wheel-rated grates for drives, aprons and yard gates, banded ends under every crossing.
Gullies & catch basins
Single grids and basin gratings for point drainage, with framing to suit the pit build.
Factory floors & washdown
Floor drain covers and channel grates in SS304 / SS316 for food and chemical washdown areas.
Specifications
Drain Grating Specifications
| Parameter | Range |
|---|---|
| Bearing bar | 20×3 mm to 100×8 mm, plain or serrated |
| Bar spacing | 30 / 40 / 60 mm centers |
| Close mesh | 11 / 11 mm, press-locked — heel-proof |
| Panel width | Up to 1.25 m |
| Panel length | Up to 6 m, cut to run lengths |
| Materials | Q235B carbon steel · SS304 / SS316 stainless |
| Surface | Black or hot-dip galvanized (ASTM A123 / ISO 1461) |
| Edges | Banded ends standard on drain duty panels |
Materials & test documents
Every heat of Q235B, SS304 or SS316 enters production with its mill test certificate verified at goods-in — the first of our five QC stages. Panels leave with documentation, not promises:
- Mill test certificate to EN 10204 Type 3.1
- Factory inspection report with every shipment
- Declaration of Conformity prepared per order destination
Load tables & calculators → · Drainage grid selection guide →
Standards & compliance
Load Classes and Finishes, Referenced and Documented
Drain gratings are produced to the class you name. Class figures below are referenced to EN 124; the bar sizes are our production recommendations inside the range we build every day.
| Load class (referenced to EN 124) | What crosses the grate | Recommended bearing bars | Typical openings |
|---|---|---|---|
| A15 | Foot traffic only, precincts, cycle lanes | 20×3 to 25×3 mm | 11 / 11 mm close mesh — heel-safe |
| B125 | Private driveways, car parks, aprons | 30×3 to 32×5 mm | 30 mm centers, banded ends |
| C250 | Kerbside runs, residential streets, delivery access | 40×4 to 50×5 mm | 30 / 40 mm centers, banded ends |
| D400 | Truck crossings, public roads, docks, forecourts | 50×5 to 100×8 mm | 30 / 40 mm centers, banded ends |
ANSI / NAAMM MBG 531
Welded drain panels produced to MBG 531 reference practice, with weld inspection on our five-stage QC plan.
ASTM A123 / ISO 1461 HDG
Galvanized coating thickness checked by sampling on every galvanized batch before panels are released.
CE & SGS tested
Certified & tested, reports on request — we show documents you can verify, not a certificate wall.
Custom made
Custom Lengths, Cut and Banded to Your Drawings
Send your drawing
Channel or trench widths, run lengths, load class, quantities — or just photos and a sketch. Drawing review is free.
Quote within 24 hours
Itemized, FOB Tianjin as standard — EXW or CIF on request. Small trial orders welcome.
Samples in 5–7 days, production in 15–25
Working days after drawing confirmation, hot-dip galvanizing included. Installation drawings and fixing layout ship with the order.
Get a factory quote in 24 hours — drain grating, stair treads and covers in one order. More about custom fabrication →
Factory-direct quote
Get a Factory Quote
Tell us the format, the channel width and the load class — an itemized quote lands within 24 hours, free drawing review included.
- Five-stage QC, from MTC verification at goods-in to final inspection
- DoC, MTC EN 10204 3.1 and inspection report with every order
- Factory audits welcome — see the lines before you commit
Prefer to talk? WhatsApp us or sales@dtsteelladder.com
Request your quote
Five fields — we do the rest.
FAQ
Frequently Asked Questions
What formats of metal drain grating does Dengtai make?
Welded and press-locked panels for trench, channel, gully and floor drain openings — bearing bars from 20×3 mm to 100×8 mm, with 30 / 40 / 60 mm centers or 11 / 11 mm close mesh where heels must stay safe. Every panel is cut to your run length and banded to your drawings.
Should I choose galvanized carbon steel or stainless drain grating?
Outdoor trench, driveway and yard runs normally take hot-dip galvanized Q235B to ASTM A123 / ISO 1461. SS304 or SS316 is the better choice in washdown areas, food plants and chloride-exposed sites, where carbon steel would corrode from the first week.
How is drain grating quoted and shipped?
Samples ship in 5–7 working days and production runs 15–25 working days after drawing confirmation. Panels ship worldwide from Tianjin Port — FOB Tianjin as standard, EXW or CIF negotiable — with an itemized quote per m² or per ton in 24 hours; we do not publish a fixed price list.
