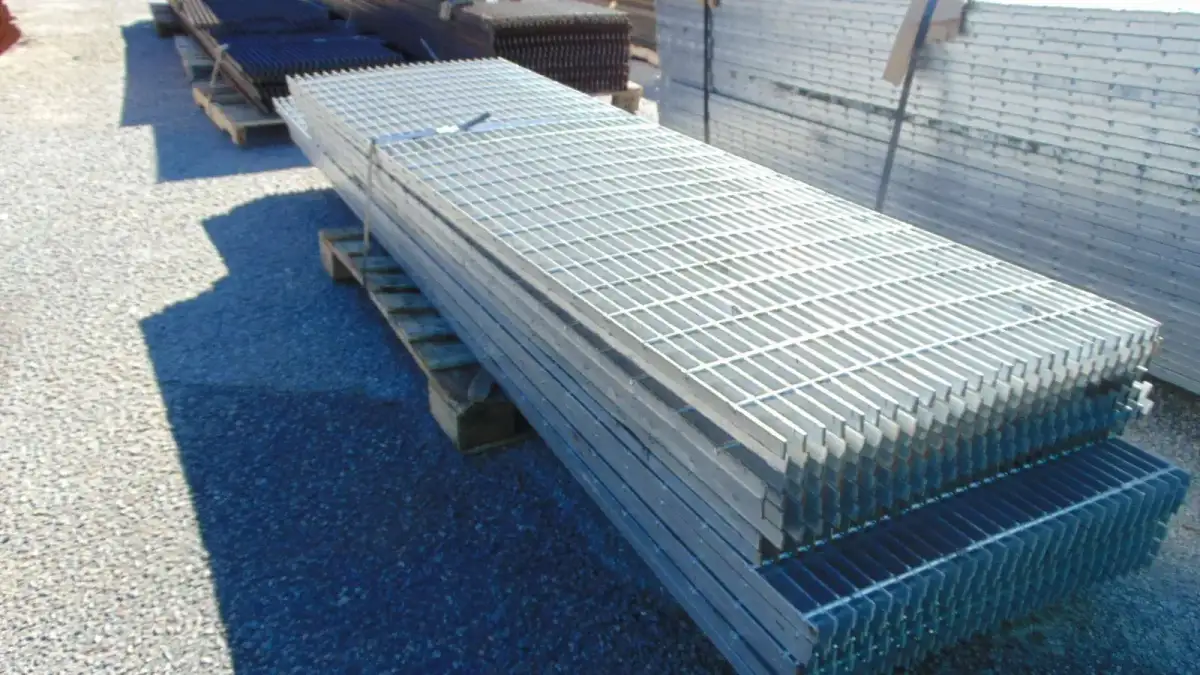

Catwalk panels from our mill
3,000 ㎡ workshop, four product lines
Certified & tested
Reports on request, MTC with every order
Samples in 5–7 days
Production in 15–25 working days
FOB Tianjin
Shipped worldwide, EXW / CIF negotiable
Catwalk fundamentals
Span vs Support Steel — and the Feel Underfoot
Whether your team says catwalk grating or grating catwalk, every elevated walk comes down to one trade: steel in the support frame, or steel in the panel. Here is how the two routes compare — qualitatively, the way it feels on shift, not just on paper.
| Design factor | Frequent support steel | Long clear spans |
|---|---|---|
| Support philosophy | More beams under the walk — each panel lands on steel at short intervals | Fewer beams — the panel itself bridges the gap between supports |
| Bearing bar | Lighter flat bars, from the 20×3 mm end of our range | Heavier sections toward 100×8 mm as spans and loads grow |
| Bar spacing | 60 mm centers carry foot traffic comfortably | 30 / 40 mm centers stiffen the deck under tool bags and carts |
| Feel underfoot | A firm, quiet step — the panel reads as part of the structure | Heavier bars keep long panels from feeling live; specify the feel you want |
| Where the steel sits | Less steel per panel, more in the support frame | More steel per panel, saved on the support frame |
| Typical use | Dense plant retrofits, pipework corridors | Cross-plant runs over conveyors, tanks and process lines |
Not sure which route your layout allows? Send your drawings — we will spec it inside the 24-hour quote.
Anatomy of a catwalk
Bearing Direction, Serration and the Guardrail Companion

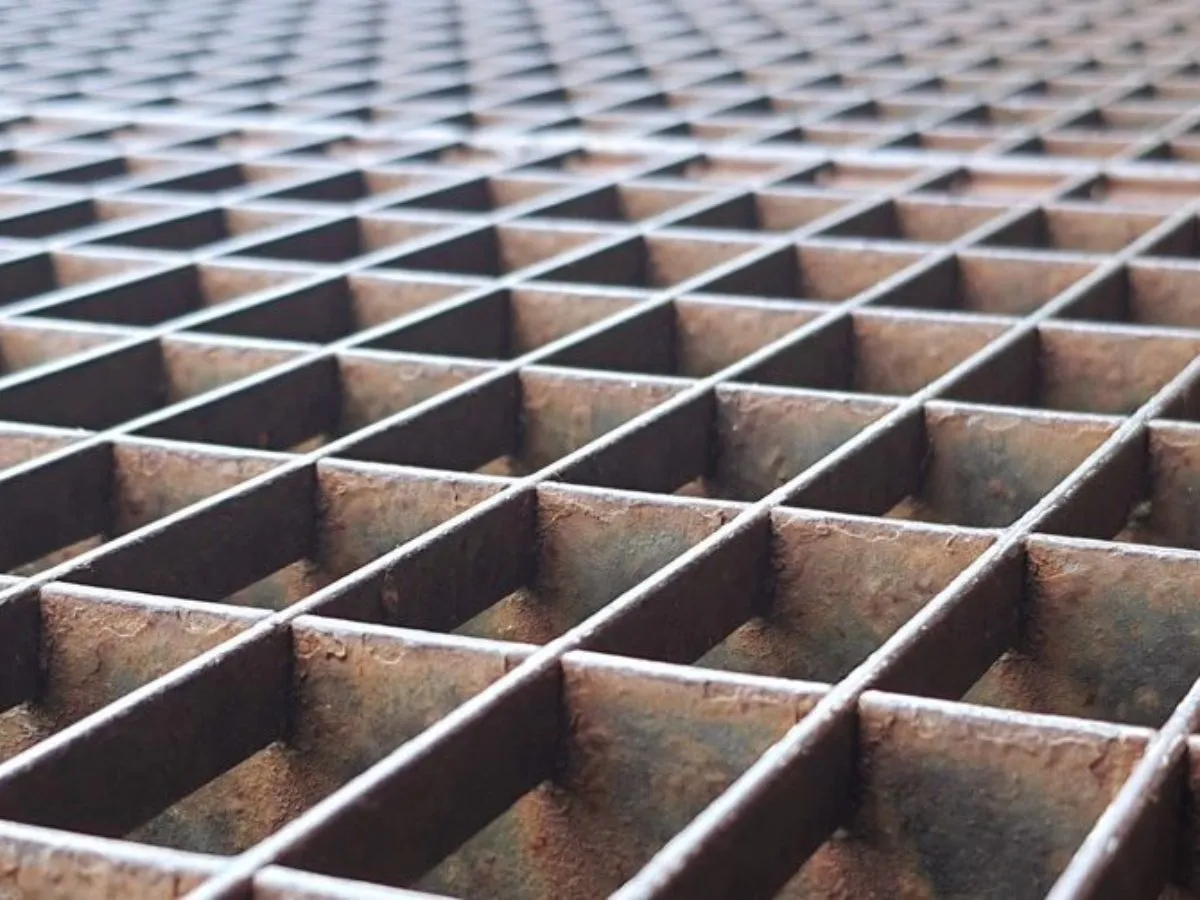

1 · Bearing bars carry the load
Feet land on bearing bars, bearing bars land on support steel — so panel orientation matters before anything else. Cross bars hold the bearing bars in plane; they do not carry the span. Our electro-forging line welds every intersection into one panel; press-locked catwalk panels cover close-mesh duties.
2 · Serrated option for oily plants
Serration is a geometry choice, not a coating: the teeth stand proud of the bar so a boot sole meets edges instead of a flat face. Specify it for wet or oily process areas; keep plain surfaces for dry indoor routes. See the serrated grating mechanics page for how the tooth profile works.
3 · The guardrail companion
A catwalk is a system, not a panel: floor panels, posts and rails, a toe plate to stop dropped tools, and infill panels that match the floor spec. Guardrail companions, toe plates and fixing clips are sourced companion items we supply alongside our panels to one set of drawings.
Why specify catwalk panels
Why Plants Order Steel Catwalk Grating Panels
Any span, any load
Serrated or plain surfaces, custom spacing and spans — tell us your load and layout. Bearing bars run from 20×3 mm to 100×8 mm, so the panel follows your support steel instead of fighting it.
Grip-safe underfoot, open above the mess
Serrated bearing bars give wet-area catwalk grating a toothed, edge-first walking surface; open mesh lets spills, dust and ice fall through instead of pooling where people walk.
Custom catwalk grating sizes
Made to spec, cut and banded to your drawings — every panel lands on your support steel without site cutting. Drawing review is free and folded into the 24-hour quote.
Applications
Where Catwalk Grating Carries Daily Traffic
A catwalk grating walkway earns its keep wherever people must move through a plant at height, day after day — around equipment, over process lines, between buildings.
Plant maintenance access
Elevated walks between process units — valves, gauges and drives reachable without scaffolding.
Conveyor & pipe racks
Long clear-span runs on fewer support beams — heavier bearing bars do the bridging.
Wet & oily process areas
Serrated surfaces and open mesh for washdown zones — the wet-area catwalk grating spec.
Tank-top & roof access
Galvanized catwalk grating for outdoor duty, tied into guardrails and stair flights as one package.
Specifications
Catwalk Grating Specifications
| Parameter | Range |
|---|---|
| Bearing bar | 20×3 mm to 100×8 mm, plain or serrated |
| Bar spacing | 30 / 40 / 60 mm centers |
| Cross bar | Twisted square or round, per specification |
| Panel width | Up to 1.25 m |
| Panel length | Up to 6 m |
| Materials | Q235B carbon steel · SS304 / SS316 stainless |
| Surface | Black or hot-dip galvanized (ASTM A123 / ISO 1461) |
| Close-mesh option | Press-locked catwalk panels down to 11 / 11 mm |
Catwalk grating + mill cert
Every heat of Q235B, SS304 or SS316 enters production with its mill test certificate verified at goods-in — the first of our five QC stages. Panels leave with documentation, not promises:
- Mill test certificate to EN 10204 Type 3.1
- Factory inspection report with every shipment
- Declaration of Conformity prepared per order destination
Walkway grating specifications → · Load tables & calculators →
Standards & compliance
Produced to Recognized Standards — Documents on Request
ANSI / NAAMM MBG 531
Catwalk panels produced to MBG 531 reference practice, with weld inspection on our five-stage QC plan.
ASTM A123 / ISO 1461 HDG
Galvanized catwalk grating checked by coating-thickness sampling on every galvanized batch before release.
CE & SGS tested
Certified & tested, reports on request — we show documents you can verify, not a certificate wall.
Custom made
Custom Catwalk Panels, Cut and Banded to Your Drawings
Send your catwalk drawings
Spans, walk widths, load notes, quantities — or just photos and a sketch. Drawing review is free.
Quote within 24 hours
Itemized and factory-direct, FOB Tianjin as standard — EXW or CIF on request. Small trial orders welcome.
Samples in 5–7 days, production in 15–25
Working days after drawing confirmation, hot-dip galvanizing included. Installation drawings and fixing layout ship with the order.
Factory-direct quote
Get a Catwalk Grating Quote
Send your catwalk drawings today for a factory quote and lead time — itemized, within 24 hours, free drawing review included.
- Five-stage QC, from MTC verification at goods-in to final inspection
- DoC, MTC EN 10204 3.1 and inspection report with every order
- Factory audits welcome — see the lines before you commit
Prefer to talk? WhatsApp us or sales@dtsteelladder.com
Request your quote
Five fields — we do the rest.
FAQ
Frequently Asked Questions
What is the lead time for catwalk grating?
Samples ship in 5–7 working days and mass production runs 15–25 working days after drawing confirmation, both including hot-dip galvanizing. Rush production in 10–15 days is possible with a surcharge — ask in your quote.
Do you accept small trial orders?
Yes — small trial orders are welcome. Full-container orders are calculated per loading plan, so you only pay for the steel you ship.
How is catwalk grating shipped and priced?
Shipped worldwide from Tianjin Port — FOB Tianjin as standard, EXW or CIF negotiable. Pricing is itemized per m² or per ton in your quote; we do not publish a fixed price list.
