Factory-direct steel gratings & stair treads, shipped worldwide
Metal Mesh Grating
Steel mesh grating for platforms, walkways and floors, made to order.
Itemized quote within 24 hours · Free drawing review included
One mesh, three metals
SS304 / SS316 stainless, galvanized Q235B, black
Certified & tested
Reports on request, MTC with every order
Samples in 5–7 days
Production in 15–25 working days
FOB Tianjin
Shipped worldwide, EXW / CIF negotiable
Metal choice
Same Mesh, Three Metals
Metal mesh grating is one product with one real decision: the metal. Whether a spec sheet calls it metal mesh grating, wire mesh grating or steel mesh grating, the geometry is identical — welded mesh at 30 / 40 / 60 mm centers or press-locked close mesh at 11 / 11 mm. What changes is the base metal under that mesh, and that choice follows the environment.
| Dimension | Stainless SS304 / SS316Corrosion zones | Galvanized Q235BWeather | Black Q235BShop-primed |
|---|---|---|---|
| Base metal | SS304 or SS316 stainless steel, no coating needed | Q235B carbon steel + zinc hot-dip coating | Q235B carbon steel, uncoated mill finish |
| Corrosion behavior | Chromium in the alloy resists rust, chemicals and washdown | Zinc layer protects the steel and takes the weathering for it | Rusts quickly if left bare — coating happens after fabrication |
| Typical zones | Food plants, chemical areas, washdown bays, marine exposure (SS316 for chlorides) | Outdoor walkways, platforms, drainage covers, fences — anywhere rain and sun hit | Dry interiors and projects that shop-prime, paint or HDG in their own plan |
| Surface & protection | Pickled & passivated bright finish | Hot-dip galvanized to ASTM A123 / ISO 1461, coating sampled per batch | Oiled for export; shop primer or hot-dip galvanizing on request |
| Mesh range | Welded 30 / 40 / 60 mm · press-locked 11 / 11 mm | Welded 30 / 40 / 60 mm · press-locked 11 / 11 mm | Welded 30 / 40 / 60 mm · press-locked 11 / 11 mm |
| Best value when | Corrosion or hygiene drives the spec — not the budget | Weather is the only enemy and zinc is enough for it | You control the finish on site and buy bare steel |
Not sure which metal your environment needs? Send your drawings — we will spec it inside the 24-hour quote.
How the metals differ
One Mesh Geometry, Three Material Destinies
1 · The mesh stays the same
Bearing bars and cross bars are joined on the same in-house lines whether the bar stock is stainless, galvanized-ready carbon or black carbon. Pick the metal first; the geometry follows your loads.
2 · Galvanized: zinc does the weathering
Finished mesh panels are immersed in molten zinc by a certified galvanizing partner near our mill — a 2–3 day cycle already counted inside your production window, with coating thickness sampled on every batch.
3 · The metal is the protection
Stainless mesh needs no coating at all — SS304 for general corrosion duty, SS316 where chlorides rule. Black mesh ships oiled for export, ready for your shop primer or galvanizing later.
Why our mesh
Why Buyers Source Metal Mesh Grating From the Factory
Factory-direct, any quantity
Buy from the mesh grating factory, not a trading desk: factory-direct FOB Tianjin pricing, itemized per order, small trial orders welcome — mesh grating, treads & covers combined in one shipment.
Heavy-duty and anti-slip

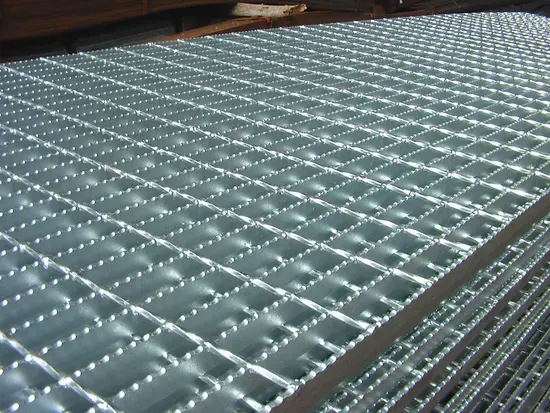

Bearing bars run 20×3 mm to 100×8 mm — heavy-duty mesh for wheel loads, plain mesh for dry zones and serrated bars where oil or water make footing slippery. Load tables available on request.
Mesh to your drawings, sample in 5–7 days
Any metal and any spacing we form, cut and banded to your drawings with free drawing review inside the 24-hour quote. Certified & tested to the reports-on-request standard, mesh grating produced to ASTM A123 where galvanized.
Applications
Where Each Metal Earns Its Mesh
Match the metal to the zone — the same mesh panels carry the floor, only the corrosion strategy changes.
Food & chemical washdown
Stainless mesh — SS304 general duty, SS316 for chlorides — hose-down floors and drainage that must not rust.

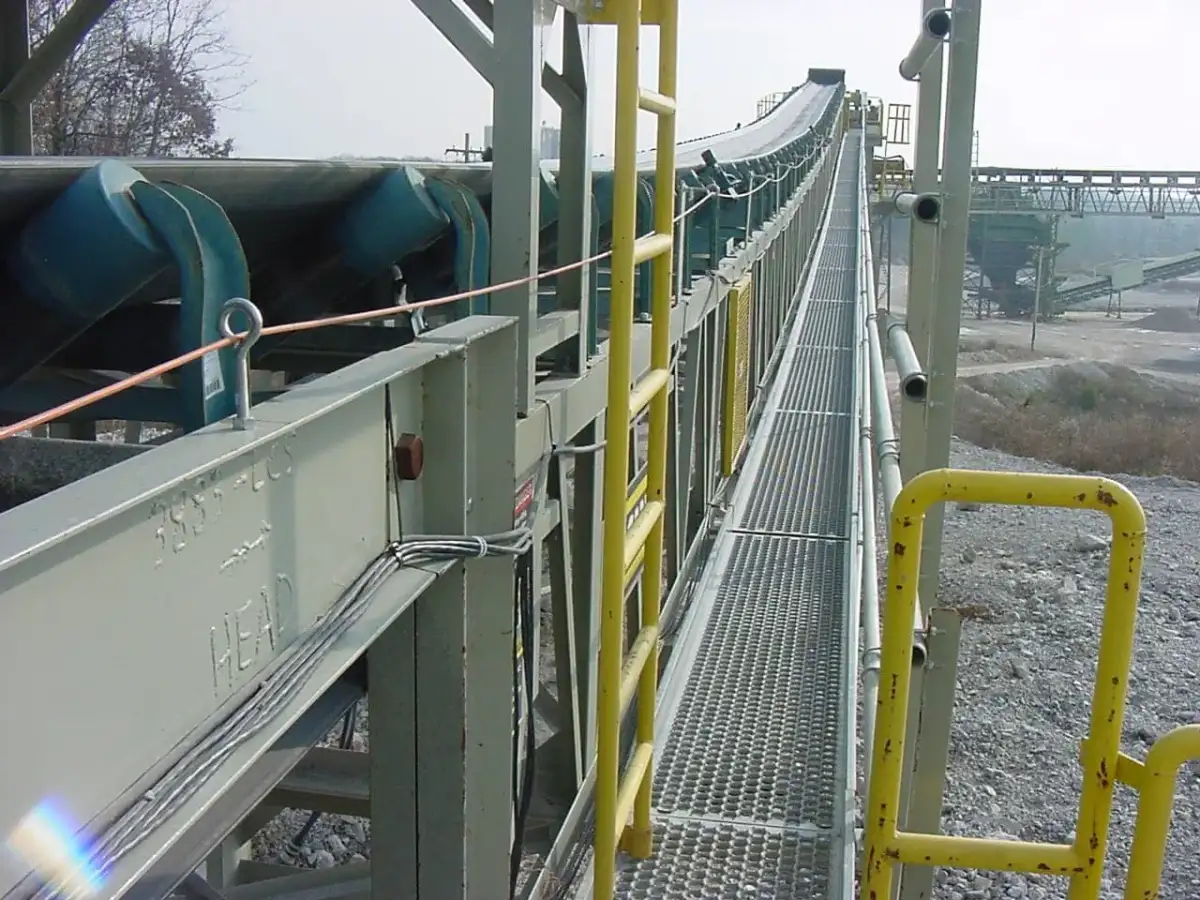

Outdoor walkways & platforms
Galvanized mesh grating for rain, sun and freeze-thaw — walkways, catwalks and plant platforms.
Trench & drainage covers
Wire mesh grating over trenches and gullies — galvanized topside, stainless where effluent attacks steel.
Shop-primed plant floors & treads
Black mesh for fabricators who coat in-house — mezzanine decks, stair treads and landings painted to house colors.
Specifications
Metal Mesh Grating Specifications
| Parameter | Range |
|---|---|
| Bearing bar | 20×3 mm to 100×8 mm, plain or serrated |
| Welded mesh centers | 30 / 40 / 60 mm |
| Close mesh option | 11 / 11 mm, press-locked (heel-proof) |
| Panel width | Up to 1.25 m |
| Panel length | Up to 6 m |
| Metals | SS304 / SS316 stainless · galvanized Q235B · black Q235B |
| Surfaces | Pickled & passivated · ASTM A123 / ISO 1461 HDG · oiled black |
| Custom panels | Cut and banded to your drawings |
Materials & test documents
Every heat of Q235B, SS304 or SS316 enters production with its mill test certificate verified at goods-in — the first of our five QC stages. Mesh panels leave with documentation, not promises:
- Mill test certificate to EN 10204 Type 3.1
- Factory inspection report with every shipment
- Declaration of Conformity prepared per order destination
Standards & compliance
Produced to Recognized Standards — Documents on Request
ANSI / NAAMM MBG 531
Mesh panels produced to MBG 531 reference practice, with joint inspection on our five-stage QC plan.
ASTM A123 / ISO 1461 HDG
For the galvanized metal option, coating thickness is checked by sampling on every galvanized batch before release.
CE & SGS tested
Certified & tested, reports on request — we show documents you can verify, not a certificate wall.
Custom made
Custom Metal Mesh, Cut and Banded to Your Drawings
Send your drawing
Mesh pattern, metal choice, panel sizes, loads, quantities — or just photos and a sketch. Drawing review is free.
Quote within 24 hours
Itemized, FOB Tianjin as standard — EXW or CIF on request. Small trial orders welcome.
Samples in 5–7 days, production in 15–25
Working days after drawing confirmation, hot-dip galvanizing included for the zinc option. Installation drawings and fixing layout ship with the order.
Factory-direct quote
Get a Factory Quote
Get a factory quote in 24 hours — mesh grating, treads & covers in one order. Tell us the zone and we will match the metal to it.
- Five-stage QC, from MTC verification at goods-in to final inspection
- DoC, MTC EN 10204 3.1 and inspection report with every order
- Factory audits welcome — see the mesh lines before you commit
Prefer to talk? WhatsApp us or sales@dtsteelladder.com
Request your quote
Five fields — we do the rest.
FAQ
Frequently Asked Questions
Stainless, galvanized or black — which metal for my mesh grating?
Pick the metal by the environment, not the mesh: SS304 stainless for general corrosion duty in food plants and washdown areas, SS316 where chlorides or marine air are present, hot-dip galvanized Q235B for outdoor weather exposure, and black mill-finish carbon steel when your project shop-primes or paints on site. The mesh geometry stays the same in every metal.
What is the lead time for metal mesh grating?
Samples ship in 5–7 working days and mass production runs 15–25 working days after drawing confirmation. Hot-dip galvanized panels include the galvanizing cycle inside that window; rush production in 10–15 days is possible with a surcharge — ask in your quote.
Do you accept small trial orders of mesh grating?
Yes — small trial orders are welcome, and mesh grating, treads and covers can ship in one order. Pricing is itemized per m² or per ton in your quote; FOB Tianjin as standard, EXW or CIF negotiable. We do not publish a fixed price list.
