Wedge Wire Drain
Handles storm water and truck wheels alike. Wedge Wire built for real sites.
Wedge wire is not a stock line here — quoted per project · Itemized quote within 24 hours
Wedge wire quoted per project
Press-locked close-mesh 11/11 as our in-house equivalent
Certified & tested
Reports on request, MTC with every order
Samples in 5–7 days
On our in-house lines, production in 15–25 working days
FOB Tianjin
Shipped worldwide, EXW / CIF negotiable

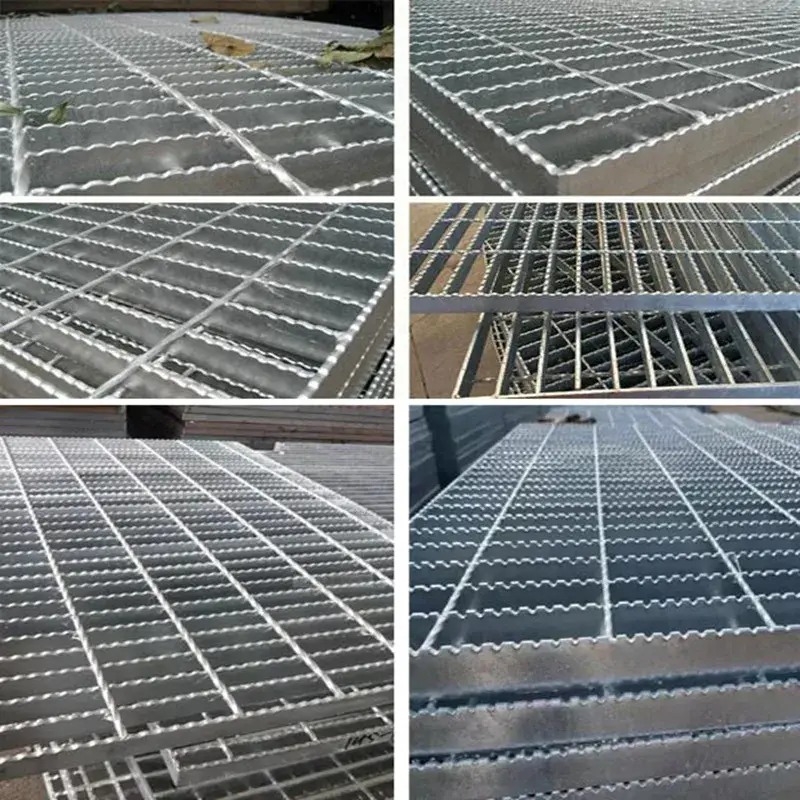

Construction comparison
Wedge Wire Screen vs Press-Locked Close-Mesh vs Welded Bar Grating
Wedge wire is a different construction, not a different size of the same product: profile bars, not flat bearing bars, and slots that are shaped rather than spaced. Here is how the three drain-deck constructions compare — with an honest note on what runs in our own workshop.
| Dimension | Wedge wire screenQuoted per project | Press-locked close-mesh | Welded bar grating |
|---|---|---|---|
| Elements | Shaped profile bars on support rods | Flat bearing bars, cross bars pressed in | Flat bearing bars, cross bars forge-welded |
| Opening | Continuous V-shaped slot, narrow at the top | Square/rectangular close mesh down to 11 / 11 mm | Open mesh, 30 / 40 / 60 mm centers |
| Slot behavior | Slot widens inward — particles pass instead of wedging | Uniform mesh; fine solids stay on top | Largest water passage; debris falls through |
| Load behavior | Profile bars give stiffness at fine openings | Very uniform load distribution; pedestrian comfort | High load capacity at wide spans |
| Typical drain duty | Stormwater inlets, washdown floors, intake screens | Municipal trench, tree pits, heel-proof floors | Trench covers, driveways, loading bays |
| Our supply | Quoted per project — not a stock line, no wedge-wire program | In-house — press-lock machine | In-house — electro-forging line |
Honest note on our wedge wire position
Wedge wire screens are not a Dengtai stock line and we run no wedge-wire production program — anyone claiming otherwise on this site would be lying to you. Wedge wire drain is quoted per project: the profile bar, slot opening and support arrangement are scoped to your specification before you commit, with material certification part of the offer. For many drain duties — trench runs, heel-proof floors, kerb lines — our in-house close-mesh press-locked grating (11/11 mm) does the same job from our own press line, and we will say when it does.
Not sure which construction fits your drain? Send your drawings — we will spec it inside the 24-hour quote.
How the construction works
Profile Bars and the V-Shaped Slot
1 · The V-shaped slot
Each opening is narrow at the walking surface and widens underneath. A grain of grit that fits through the entry keeps falling — it cannot turn and jam. That is the self-cleaning geometry wedge wire is specified for, and it comes from bar shape, not from coatings or maintenance.
2 · Profile bars on support rods
Wedge-shaped bars are set side by side on support rods, and the gap between adjacent bars becomes one continuous, unbroken slot. Water enters along the full length of the panel — there are no discrete holes to block, which is why the format suits high-flow intake duty.
3 · Our in-house equivalent
For drain duties that need fine, heel-proof openings rather than a true V-slot, our press-lock machine makes close-mesh panels down to 11/11 mm from our stock Q235B, SS304 and SS316. That is a stock program; wedge wire is not. Tell us the duty and we will say which one fits.
Why specify wedge wire
Why Drain Specifiers Ask for a Wedge Wire Drain
High-flow by geometry
A continuous slot admits water along its whole length, and the V-shape keeps the entry clear of grit — high-flow intake with a low clogging tendency, the reason wedge wire drains handle storm water on real sites without a fine mesh to blind.
Heavy duty, built to last
The profile bar is deep in the direction of load, so a wedge wire drain holds truck wheels and cleaning traffic at fine slot openings where a thin screen would fold. Slot openings and bar sections are set to your loads in the per-project quote.
Made to spec, any length, with mill cert
Slot opening, panel size and run length follow your drawing — wholesale runs or small trial orders, factory-direct with no middlemen. Certified & tested, reports on request: the material certification for a quoted wedge wire screen is part of the offer, not an afterthought.
Applications
Where Wedge Wire Drains Are Specified
Duties where the continuous fine slot earns its place: water arriving fast, solids that must pass, surfaces that get washed down. Each of these is also a duty our close-mesh press-locked line can quote in-house — the RFQ will settle which construction fits.
Stormwater & kerb inlets
Fast sheet flow with grit and litter in it — the V-slot drinks the water while the worst solids wash over. See the stormwater steel grid for open-mesh variants.
Food & washdown floors
Daily hose-down with solids in the water: the fine slot passes the wash, keeps the floor drainable. SS304 / SS316 equivalents on our stainless drain grating line.
Water treatment & intake screens
The classic wedge wire duty — screening water while it moves, slot by unbroken slot. Quoted per project with the slot opening scoped to your solids load.
Heel-proof pedestrian floors
Fine, uniform openings that a shoe heel cannot enter — our in-house answer is the 11/11 close-mesh press-locked panel, quoted directly from our own press line.
Specifications
Wedge Wire Drain Specifications

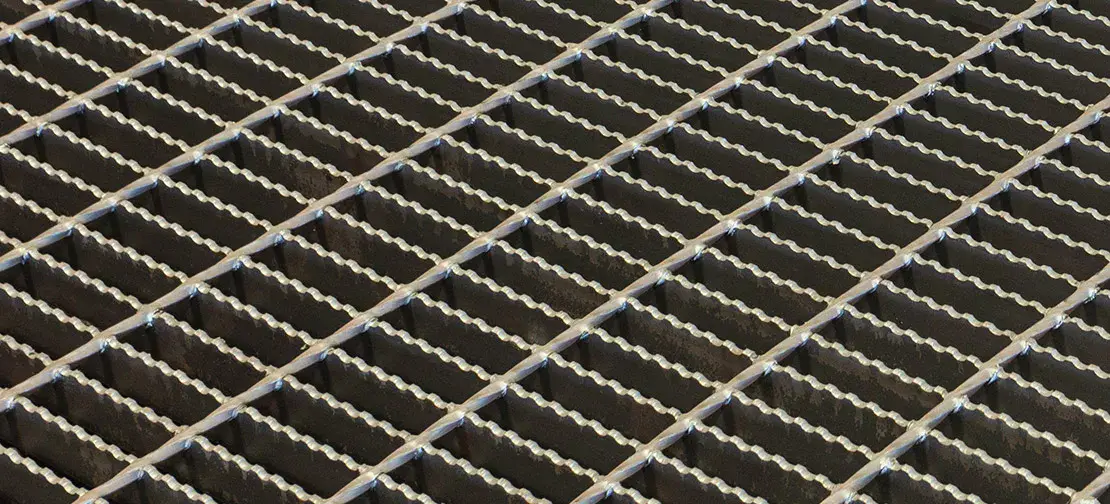

| Parameter | Supply basis |
|---|---|
| Wedge wire screen | Quoted per project — not a stock line |
| Profile bar & support rod | Scoped to your loads in the per-project quote |
| Slot opening | Set to your specification and solids load |
| In-house equivalent | Press-locked close mesh down to 11 / 11 mm |
| Equivalent bar steel | 20×3 mm to 100×8 mm, plain or serrated |
| Equivalent bar spacing | 30 / 40 / 60 mm centers on welded runs |
| Panel width × length | Up to 1.25 m × 6 m, cut and banded to drawings |
| Materials | Q235B carbon steel · SS304 / SS316 stainless |
| Surface | Black or hot-dip galvanized (ASTM A123 / ISO 1461); stainless mill finish |
Materials & test documents
Every heat of our stock Q235B, SS304 or SS316 enters production with its mill test certificate verified at goods-in — the first of our five QC stages. A quoted wedge wire screen ships with the same documentation discipline, scoped before you commit:
- Mill test certificate to EN 10204 Type 3.1
- Factory inspection report with every shipment
- Declaration of Conformity prepared per order destination
Load tables & calculators → · Drainage grid selection guide →
Load classes & standards
EN 124 Load Class Guide for Wedge Wire Drain Runs
Class names referenced to EN 124, the public standard for gully covers and gratings — a sizing reference for the conversation, not a certification claim. The RSA promise "truck wheels alike" lives in the bottom two rows.
| EN 124 class | Typical duty | Recommended steel (our range) | Construction that fits |
|---|---|---|---|
| A15 | Pedestrian & cycle areas | 20×3 mm bars / light profile | Wedge wire slot or close mesh 11/11 |
| B125 | Kerbside & light traffic | 25×3 – 30×3 mm | Wedge wire inlet or press-locked panel |
| C250 | Commercial kerbs & parking bays | 30×5 – 40×5 mm | Press-locked or welded panel |
| D400 | Carriageways & loading bays | 50×5 mm up to 100×8 mm | Welded bar grating — quoted per layout |
Produced to EN 124 classes
Wedge wire screens and equivalent panels produced to the class you specify — final construction confirmed in your itemized quote against the actual wheel and foot loads.
Mill cert on every construction
Q235B, SS304 and SS316 heats verified at goods-in; for a quoted wedge wire screen the sourced-material certificate is scoped in the offer, so the slot you specified rides on the steel you were promised.
CE & SGS tested
Certified & tested, reports on request — we show documents you can verify, not a certificate wall.
Custom made
Wedge Wire, Any Length — Quoted From Your Layout
Send your layout
Slot opening, run lengths, panel sizes, loads and quantities — or just photos and a sketch. Drawing review is free.
Quote within 24 hours
Itemized, FOB Tianjin as standard — EXW or CIF on request. The wedge wire scope (or the in-house close-mesh equivalent) is stated plainly in the same quote. Small trial orders welcome.
Samples in 5–7 days, production in 15–25
Working days after drawing confirmation on our in-house lines, hot-dip galvanizing included. Installation drawings and fixing layout ship with the order.
Factory-direct quote
Get a Factory Quote
Send your wedge wire layout for a factory quote — slot openings, panel sizes, loads and quantities. We reply within one business day, free drawing review included.
- Wedge wire quoted per project — no false stock claims, close-mesh equivalent stated when it fits
- DoC, MTC EN 10204 3.1 and inspection report with every order
- Factory audits welcome — see the lines before you commit
Prefer to talk? WhatsApp us or sales@dtsteelladder.com
Request your quote
Five fields — we do the rest.
FAQ
Frequently Asked Questions
Is wedge wire drain a stock Dengtai product?
No - and we say so plainly. Wedge wire screens are not a Dengtai stock line and we run no wedge-wire production program. Wedge wire drain is quoted per project, scoped to your slot opening and load specification with the material certification included; for many drain duties our in-house press-locked close-mesh (11/11 mm) is the honest equivalent, made on our own press line.
What makes wedge wire slots self-cleaning?
Each slot is formed between two profile bars with a V-shaped cross-section: narrow at the wear face, wider underneath. Particles that pass the narrow entry keep going instead of wedging, and the continuous unbroken slot admits water along its full length - high-flow intake with a low clogging tendency by geometry, not by coating.
How do I request wedge wire drain from Dengtai?
Send your layout - slot opening, panel sizes, loads and quantities - through the quote form below. You receive an itemized quote within 24 hours; on our in-house lines samples ship in 5–7 working days and production runs 15–25 working days after drawing confirmation. Whatever the construction, you receive mill test certificates (EN 10204 Type 3.1) with every shipment.
