Metal Frame and Grating
Frames, clips, clamps and toe plates - complete your system in one order.
Itemized quote within 24 hours · Free drawing review included
Panels made in-house
Electro-forging and press-locking under one roof
Certified & tested
Reports on request, MTC with every order
Samples in 5–7 days
Production in 15–25 working days
FOB Tianjin
Shipped worldwide, EXW / CIF negotiable
Framing options per opening
Pit Frame vs Angle Surround vs Seating Angle
A steel grating frame is the steel surround that turns a cut opening into a finished system: it carries cover loads back to the structure, gives panels a level seat, and keeps edges clean. Three framings cover most openings — here is how they differ.
| Dimension | Pit Frame | Angle Surround | Seating Angle |
|---|---|---|---|
| Typical opening | Pits, sumps, valve chambers, deep trench runs | Floor openings, hatches, cutouts in concrete or blockwork | Platform cutouts, panel breaks in walkway runs |
| Load path | Frame legs carry cover loads down to the pit base or surrounding structure | Angles close and stiffen the edge; loads pass to the host structure | Angle leg hands the load to the supporting steel at a constant height |
| Cover seating | Ledged seat at a set depth — covers drop in flush or raised | Edge trim that stops spalling and squares the opening | Horizontal leg gives every panel a level bearing surface |
| Section forms | Angle, flat bar or channel, welded corner to corner | Equal or unequal angle, bolted or anchored | Inset angle, sometimes on a flat or channel back |
| Cover retention | Clips, clamps or bolt-down sets — covers stay removable | Screw-down or clip-fixed covers | Free-seating or clipped panels for access |
| How we supply | Frame steel fabricated and paired per project to our panels | Paired per project with the panel schedule | Paired per project with the panel schedule |
Not sure which framing suits your opening? Send your opening dimensions and support detail — we will spec the set inside the 24-hour quote.
Why framed openings matter
What a Frame Does for a Grating Panel
1 · Load transfer to the structure
Without a frame, a panel bears on whatever it touches — often just the concrete lip. Frame legs carry wheel and foot loads down to real structure, so the edge of the opening never becomes the weak point.
2 · A level seat for every cover
Cut openings are rarely level. A seating angle puts every panel on a horizontal leg at one constant height — no rocking covers, no rattle under traffic, no step to trip on at the edge.
3 · Covers that stay removable
A framed opening is a maintainable one: panels seat repeatably and lift out for cleaning, cabling and valve work, then drop back onto the same ledge — held down by clips, not welds.
How we quote a frame + grating set
What We Make In-House — and What Is Paired
Straight answer, because it affects your schedule and your paperwork: the grating is ours; the frame steel is fabricated to our opening schedule and paired with the panels as one set.
Made in our workshop

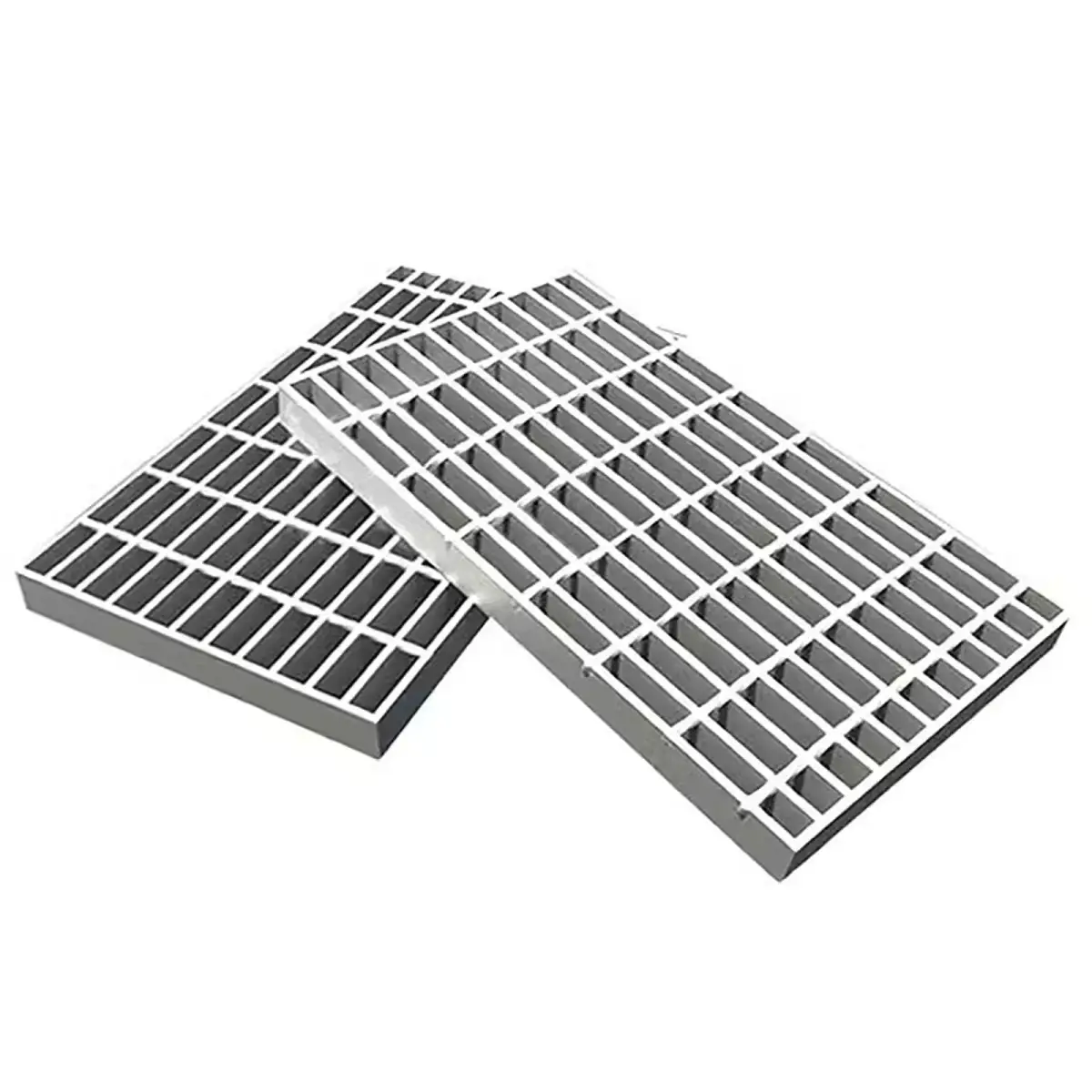

- Grating panels — electro-forged and press-locked on our own lines
- Cutting to your opening sizes, banding and edge preparation
- The opening schedule — seat depths and panel takeoff for the whole set
- Five-stage QC and hot-dip galvanizing management to ASTM A123 / ISO 1461
Fabricated and paired per project
- Frame steel — angle, flat bar and channel sections cut, drilled and welded to the opening schedule
- Supplied to match our panels — same finish logic, same documentation trail
- Clips, clamps and toe plates — sourced companion items, quoted with the set
- One purchase order, one shipment — everything clears customs together
Your quote shows the split honestly: panels, frame steel and fixings as separate line items — FOB Tianjin, itemized quote on request.
Why buy the set from us
Why Buyers Order Frames With Their Grating
Frames made to spec
Angle, flat bar or channel sections to your opening schedule — cut, drilled and welded for each opening, with free drawing review in the 24-hour quote.
Heavy-duty frame options
Heavier sections with thicker bearing bars and closer centers for wheel loads — load tables provided with your quote, never guessed.
Galvanized or stainless
Q235B frames hot-dip galvanized to ASTM A123 / ISO 1461 as standard; SS304 or SS316 for washdown, chemical and coastal duty.
Mill cert with every set
Mill test certificate to EN 10204 3.1 for the panel steel, and documentation for the paired frame steel — ask in your quote.
Applications
Where Framed Openings Earn Their Keep
Any opening that will be walked over, driven over or opened again later deserves a frame — the panel alone is only half the detail.
Trench & pit covers
Linear trench runs, sumps and valve chambers — frames give every cover a repeatable seat at floor level.
Platform cutouts & hatches
Equipment access and maintenance hatches — angle surrounds square the cut and keep edges stiff.
Mezzanine & walkway edges
Seating angles at panel breaks and level changes — one bearing height across the whole run.
Landings & thresholds
Transitions from grating to plate or concrete — framed edges remove the trip step at the boundary.
Specifications & takeoff
Frame + Grating Set Specifications
| Parameter | Range |
|---|---|
| Frame sections | Angle, flat bar and channel, per opening schedule |
| Panel bearing bar | 20×3 mm to 100×8 mm, plain or serrated |
| Bar spacing | 30 / 40 / 60 mm centers |
| Panel size | Up to 1.25 m wide × 6 m long |
| Materials | Q235B carbon steel · SS304 / SS316 stainless |
| Surface | Black or hot-dip galvanized (ASTM A123 / ISO 1461) |
| Fixings | Clips, clamps and bolt-down sets, supplied to match |
| Documentation | MTC EN 10204 3.1 · inspection report · DoC per destination |
Take off your openings in four numbers
A usable frame quote needs less than a full drawing set. For each opening, send:
- 1Clear opening size — length × width, and overall cover size if fixed
- 2Support detail — concrete, steel beam or blockwork, and seat depth
- 3Traffic — pedestrian, pallet truck or vehicle wheels
- 4Quantities and finish — galvanized or stainless, flush or raised
Send your takeoff — we will check it free → · Panel load tables →
Standards & compliance
Produced to Recognized Standards — Documents on Request
ANSI / NAAMM MBG 531
Panels produced to MBG 531 reference practice, with weld inspection on our five-stage QC plan.
ASTM A123 / ISO 1461 HDG
Galvanized coating thickness checked by sampling on every galvanized batch — panels and frame steel alike.
CE & SGS tested
Certified & tested, reports on request — documents you can verify, not a certificate wall.
Ordering the set
From Opening Dimensions to a Framed, Seated Cover
Send dimensions and support detail
Clear opening size, seat depth, what the frame bears on, traffic and quantities — or a marked-up drawing. Review is free.
Quote within 24 hours
Itemized FOB Tianjin as standard, EXW or CIF on request — panels, frame steel and fixings as separate lines. Small MOQ, any quantity.
Samples in 5–7 days, production in 15–25
Working days after drawing confirmation, hot-dip galvanizing included. Installation drawings and fixing layout ship with the order.
Factory-direct quote
Get a Frame and Grating Quote
Send your frame specs for a quote — opening dimensions and support detail are enough to start. Small MOQ, shipped FOB Tianjin.
- Panels, frame steel and fixings as separate line items
- MTC EN 10204 3.1 and inspection report with every order
- Factory audits welcome — see the lines before you commit
Prefer to talk? WhatsApp us or sales@dtsteelladder.com
Request your quote
Five fields — we do the rest.
FAQ
Frequently Asked Questions
Do you manufacture the frames yourselves?
The grating panels are made in-house on our electro-forging and press-locking lines. Frame steel — angle, flat bar and channel sections — is fabricated and paired per project to the opening schedule we prepare with your quote, then supplied with the panels as one set.
What should I send for a frame and grating quote?
Send the clear opening dimensions, what the opening sits in (concrete, steel or blockwork), the seat depth, the load or traffic expected, and the panel spec with quantities. You get an itemized quote — panels, frame steel and fixings as separate lines — within 24 hours.
Can the frames be supplied galvanized or stainless?
Yes. Carbon steel frames are hot-dip galvanized to ASTM A123 / ISO 1461; SS304 or SS316 frames are available for corrosive and washdown areas. Samples ship in 5–7 working days and production runs 15–25 working days after drawing confirmation.
