Custom Grating Panels
From drawing to delivery: custom grating panels made in one factory.
Itemized quote within 24 hours · Free drawing and layout review included
Quote within 24 hours
Free drawing and layout review included
Samples in 5–7 days
Production in 15–25 working days
Certified & tested
Reports on request, MTC 3.1 with every order
FOB Tianjin
Factory-direct, shipped worldwide
Panel formats
Stock Panels vs Custom-Cut Panels vs Mapped Panel Runs
Most "custom" orders are really one of three panel formats. Knowing which one your project needs makes the quote faster — and the site install cleaner.
| Dimension | Stock Catalog Panel | Custom-Cut Panel | Mapped Panel Run |
|---|---|---|---|
| Sizing basis | Fixed catalog widths and lengths | Your panel schedule, millimetre-exact | Your area layout, split into shippable panels |
| Panel shape | Rectangular only | Rectangular with angled ends, notches and holes | Irregular areas; radiused ends quoted to drawing |
| Openings | As the mesh runs | Cut around pipes, cable trays and columns | Openings coordinated across neighboring panels from one layout |
| Panel marking | None | Dimension label per panel | Stencilled or tag number per panel for site assembly |
| Best for | Refilling standard platforms | One-off replacements and small areas | Whole floors, walkway runs, trench lines |
| How to order | Pick a designation | Send a dimensioned drawing | Send the layout — we produce the panel map |
Not sure which format fits your area? Send your drawings — we will spec it inside the 24-hour quote.
From layout to labeled panels
How We Turn an Area Into Numbered Panels
1 · Panel map take-off
Send the layout, a GA drawing or photos with a sketch. We split the area into panels inside the single-panel envelope — up to 1.25 m wide and 6 m long — and mark every joining edge.
2 · Cut and band to dimensions
Panels are cut millimetre-exact, notched and drilled for penetrations, then banded on the cut edges so nothing unravels — banding types are covered on our banded grating page.
3 · Number, pack, ship
Every panel is stencilled or tagged to match the panel map, then packed in assembly order. Installation drawings and fixing layout ship with the order — bolted assembly, no site welding.
Why order custom
Why Buyers Order Custom Grating Panels From One Factory
Any size, made to order
Custom size grating is our normal condition, not an exception fee. Millimetre-exact panels, non-standard shapes and irregular openings — all quoted from your drawing.
One factory, drawing to delivery
Cutting, banding, numbering and packing all happen in our own workshop — one team answers for the whole panel run, and factory audits are welcome.
Quick-turn samples
Check the fit before you commit: sample panels ship in 5–7 working days, hot-dip galvanizing included, so approvals do not stall the schedule.
Applications
Where Custom Panel Formats Earn Their Keep
Any floor that is not a neat rectangle — or any site where panels must land in the right order — is a custom panel job.

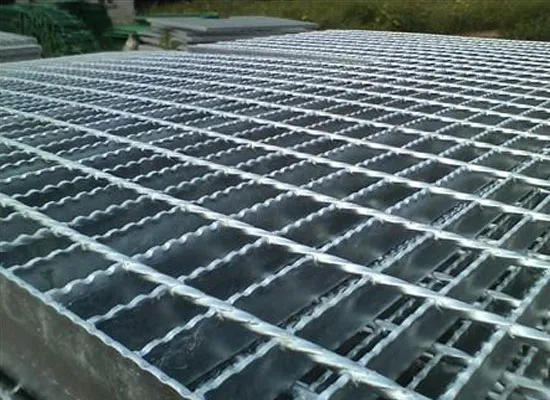

Whole platform floors
Mezzanines and plant floors ordered as one mapped run of numbered panels.
Trench and pit covers
Cover runs cut to length with end plates — see custom trench grating.
Odd openings & penetrations
Panels cut around pipes, trays and columns so the mesh keeps bearing in both directions.
Replacement panels
Match an existing floor panel by panel — small trial orders are welcome.
Specifications
Custom Size Grating: the Panel Envelope and Beyond
| Parameter | Custom panel range |
|---|---|

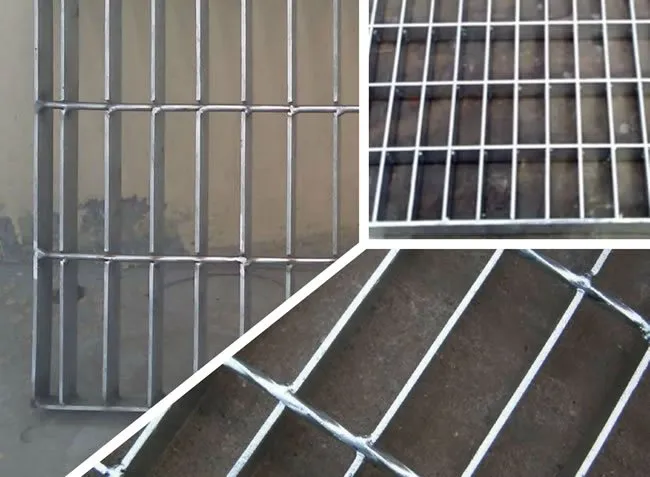

| Bearing bar | 20×3 mm to 100×8 mm, plain or serrated |
| Bar spacing | 30 / 40 / 60 mm centers; press-locked close mesh down to 11 / 11 mm |
| Single-panel envelope | Up to 1.25 m wide × 6 m long |
| Larger areas | Mapped panel runs, banded joining edges, numbered for assembly |
| Custom features | Notches, holes, angled or radiused ends (quoted to drawing), kicker bands |
| Materials | Q235B carbon steel · SS304 / SS316 stainless |
| Surface | Black or hot-dip galvanized (ASTM A123 / ISO 1461) |
| Panel marking | Stencil or tag number per panel, matched to the panel map |
Materials & test documents
Custom does not mean undocumented. Every heat of Q235B, SS304 or SS316 enters production with its mill test certificate verified at goods-in — the first of our five QC stages — and the paperwork follows the panels:
- Mill test certificate to EN 10204 Type 3.1
- Factory inspection report with every shipment
- Declaration of Conformity prepared per order destination
Standards & compliance
Produced to Recognized Standards — Documents on Request
ANSI / NAAMM MBG 531
Custom panels produced to MBG 531 reference practice, with weld inspection on our five-stage QC plan.
ASTM A123 / ISO 1461 HDG
Galvanizing runs at a certified partner near our mill; coating thickness is sampled on every batch before panels are released.
CE & SGS tested
Certified & tested, reports on request — test data for your custom grating panels per batch, not a certificate wall.
Custom made
Send the Layout — We Cut, Band and Number Every Panel
Send your drawing or layout
A panel schedule, a GA drawing, or photos with a sketch — whatever you have. Drawing and layout review is free.
Quote within 24 hours
Itemized and factory-direct, FOB Tianjin as standard — EXW or CIF on request. Small trial orders welcome.
Samples in 5–7 days, production in 15–25
Working days after drawing confirmation, hot-dip galvanizing included. Panels arrive numbered to the panel map, with installation drawings and fixing layout.
Factory-direct quote
Get a Factory Quote
Send your drawings for custom grating panels. Reply in 24 hours, samples in 5–7 working days — free drawing and layout review included.
- Five-stage QC, from MTC verification at goods-in to final inspection
- DoC, MTC EN 10204 3.1 and inspection report with every order
- Factory audits welcome — see the lines before you commit
Prefer to talk? WhatsApp us or sales@dtsteelladder.com
Request your quote
Five fields — we do the rest.
FAQ
Frequently Asked Questions
What should I send to order custom grating panels?
A dimensioned drawing or a simple panel schedule is enough to start — photos with a sketch work too. For whole areas, send the layout and we split it into a panel map of shippable panels inside the single-panel envelope, with joining edges marked. Drawing review is free inside the 24-hour quote.
Can custom panels be larger than 1.25 m by 6 m?
That is the envelope for a single panel, set by our panel-forming lines. Larger areas are covered as a mapped panel run: panels are cut and banded to dimensions, joined on site, and every panel is stencilled or tagged so the crew assembles without guessing.
Do you accept small trial orders of custom size grating?
Yes — small trial orders are welcome, including custom size grating made to your drawings. Samples ship in 5–7 working days, and full-container orders are calculated per loading plan.
