What the term means
Steel Diamond Grating — Two Products, One Honest Page
Steel diamond grating is a search phrase, not a single product. Most often it points at a solid raised-diamond tread plate — the patterned sheet also sold as diamond plate, checker plate or floor plate, the same family as diamond plate grating. A second group of buyers means grating with diamond-pattern openings. We say plainly what we make and what we do not: our in-house forge-weld and press lines build open mesh, so diamond openings map to our square and open-mesh layouts, and the solid tread plate is a derived format quoted to your drawings — with no stock tread-plate size program behind it. Here is the fair comparison.
Reading A — solid diamond tread plate
One patterned steel sheet, flat and closed. Nothing drains through it, nothing falls through it. It is not one of our grating lines — we fabricate it as a derived format, cut and finished to drawings in the same workshop that bands and galvanizes our panels. See checker plate grating for the full solid-plate page.
Reading B — diamond-pattern openings
An open panel whose apertures the buyer pictures as diamonds. Our lines form rectangular and square openings from bearing bars and cross bars, so the honest equivalent is our square grating layouts — close-mesh press-locked down to 11/11 mm spacing, or welded open mesh on the welded line at 30/40/60 mm.
| Dimension | Open Welded Grating | Diamond Tread Plate — Solid | Diamond-Opening Mesh |
|---|---|---|---|
| Construction | Bearing bars and cross bars form an open grid | One solid sheet with a raised diamond pattern | Square or rectangular apertures standing in for the diamond layout |
| Water, snow & debris | Falls straight through — a self-cleaning deck | Stays on top — needs falls, holes or clearing | Falls through, slower as mesh tightens |
| Solids containment | Small parts can drop through the mesh | Fully contained on a closed deck | Close mesh contains most small parts |
| Load behavior | High capacity at wide spans, set by bar selection | Loads spread across the full sheet | Set by bearing bar size and spacing, like any open panel |
| Underfoot surface | Flat bars, or serrated teeth as an option | Raised diamond pattern across the whole sheet | Flat bars; the pattern lives in the openings, not the surface |
| Ventilation & light | Air and light pass through | Closed deck | Air and light pass through, less in close mesh |
| Our supply basis | In-house — the electro-forged welded line | Derived format — fabricated to drawings, no stock size program | In-house — press-locked and welded lines, quoted as square/open mesh |
We do not claim slip-performance results for any surface — for geometry-based anti-slip options on open mesh, see serrated grating. Not sure which reading your project needs? Send your drawings — we will spec it inside the 24-hour quote.
How the formats are built
From Drawing to a Diamond Surface or a Diamond Layout
1 · Tread plate to drawing
Solid diamond tread plate is cut to your panel sizes on the workshop saw and plasma path. Thickness and pattern follow your specification — there is no stock tread-plate program to pull a size from.

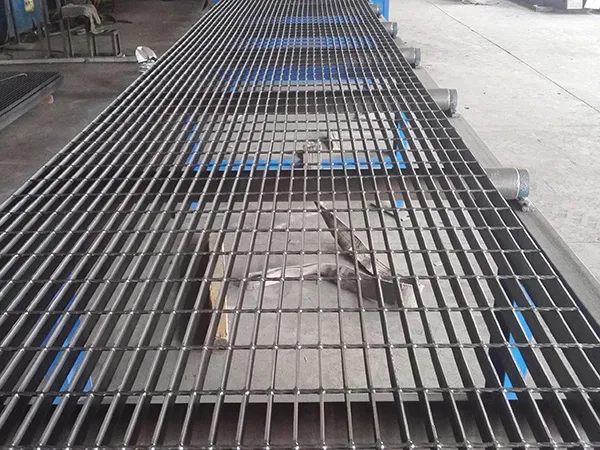

2 · Open mesh on our lines
The diamond-opening reading is built as a square or open-mesh layout: bearing bars and cross bars joined on the electro-forged weld line, or interlocked on the press line for close mesh down to 11/11 mm.
3 · Hot-dip galvanizing
Carbon steel panels — plate or mesh — go to a certified galvanizing partner near our mill for ASTM A123 / ISO 1461 hot-dip galvanizing, typically 2–3 days, already counted inside your production window.
Why buyers ask for diamond
Why Buyers Ask for a Diamond Format
Flat-top deck, made either way
A diamond steel grating surface means an even walking plane — a closed raised-pattern sheet, or flat bars in an open panel. We quote both from the same drawing set, so the choice follows your duty, not our stock list.
Custom formats, small MOQ
Every diamond order is cut to drawings with free drawing review — plate thickness, pattern, mesh and panel sizes all follow your spec. Small trial orders are welcome, so you can prove a panel before a full program.
Factory-direct & tested
Quoted direct from the workshop, FOB Tianjin — no trader margin in between. Certified & tested, reports on request, with an MTC EN 10204 3.1 for every heat used.
Applications
Where Each Diamond Reading Earns Its Place
The honest rule has not changed since the checker plate page: specify a closed or tight deck when something must stay on it, and an open panel when something must fall through it. These are the duties that pull buyers toward one reading or the other.
Floors above occupied space
Mezzanines and storage decks over work areas — solid diamond tread plate keeps small parts and spill solids on the deck instead of raining through the mesh.
Ramps, docks & vehicle beds
Loading ramps, dock plates and truck beds — a continuous raised-pattern surface where wheels meet the deck and nothing should drop through.
Wet areas — use open mesh
Where water must drain, a closed diamond deck fights you. Our trench grating and welded open mesh lines are the right answer — we will say so in the quote.
Pedestrian decks — close mesh
When the diamond-opening idea is really about foot comfort and small-object containment, close-mesh square layouts get you there while staying open to drainage.
Specifications
Steel Diamond Grating — Quoted to Drawing, Never Off a List
| Parameter | Basis |
|---|---|
| Formats | Solid diamond tread plate panel · diamond-opening layout as square / open mesh |
| Plate thickness & pattern | To your specification — raised diamond tread face |
| Grating basis (mesh layouts) | Bearing bars 20×3 mm to 100×8 mm · spacing 30 / 40 / 60 mm · close mesh to 11/11 mm |
| Panel size | Grating basis up to 1.25 m × 6 m · plate panels to drawing |
| Materials | Q235B carbon steel · SS304 / SS316 stainless |
| Surface | Black or hot-dip galvanized (ASTM A123 / ISO 1461) |
| Stock program | None — every diamond enquiry is quoted to drawings |
Materials & test documents
Every heat of Q235B, SS304 or SS316 enters production with its mill test certificate verified at goods-in — the first of our five QC stages. Panels leave with documentation, not promises:
- Mill test certificate to EN 10204 Type 3.1
- Factory inspection report with every shipment
- Declaration of Conformity prepared per order destination
Standards & compliance
Produced to Recognized Standards — Documents on Request
ANSI / NAAMM MBG 531
The mesh side of a diamond order is produced to MBG 531 reference practice, with joint inspection on our five-stage QC plan.
ASTM A123 / ISO 1461 HDG
Galvanized coating thickness checked by sampling on every galvanized batch before plate or mesh panels are released.
CE & SGS tested
Certified & tested, reports on request — we show documents you can verify, not a certificate wall.
Custom made
Diamond Grating to Your Drawings — Format Decided Up Front
Send your drawing
Tell us which reading you need — solid tread plate or an open diamond layout — with panel sizes, thickness or mesh, and quantities. A sketch and photos are enough to start; drawing review is free.
Quote within 24 hours
Itemized, FOB Tianjin as standard — EXW or CIF on request. Small trial orders welcome, and an honest read on format if open mesh serves you better.
Samples in 5–7 days, production in 15–25
Working days after drawing confirmation, hot-dip galvanizing included. Installation drawings and fixing layout ship with the order.
Factory-direct quote
Get a Factory Quote
Send drawings for diamond grating — quote in 24 hours, custom formats from small MOQ, free drawing review included.
- Five-stage QC, from MTC verification at goods-in to final inspection
- DoC, MTC EN 10204 3.1 and inspection report with every order
- An honest read on format — if open mesh serves you better, we say so
Prefer to talk? WhatsApp us or sales@dtsteelladder.com
Request your quote
Five fields — we do the rest.
FAQ
Frequently Asked Questions
What does steel diamond grating actually mean?
In most searches it means a solid raised-diamond tread plate — the patterned sheet also sold as diamond plate, checker plate or floor plate. A second group of buyers means grating with diamond-shaped openings. We are honest about both: the solid plate is a derived format for us, quoted to drawings, while diamond-opening panels map to the square and open-mesh layouts our welded and press-locked lines build.
Can you make grating with diamond-shaped openings?
Our in-house lines form rectangular and square apertures from bearing bars and cross bars, not true diamond openings. The practical equivalent of a diamond-opening panel is a square or open-mesh layout — press-locked close mesh down to 11/11 mm spacing, or welded open mesh at 30/40/60 mm. Send your drawing and we will propose the closest honest layout.
How fast can I get diamond grating samples?
Samples ship in 5–7 working days and mass production runs 15–25 working days after drawing confirmation, hot-dip galvanizing included. Every enquiry starts with a drawing review and an itemized quote within 24 hours — small trial orders are welcome.
