Plain Steel Grating
Plain steel grating, smooth top, welded and cut to size.
Plain style grating in Q235B mill steel · black or hot-dip galvanized · itemized quote within 24 hours
Mill made, not traded
Plain panels welded on our own in-house lines
Certified & tested
Reports on request, MTC with every order
Samples in 5–7 days
Production in 15–25 working days
FOB Tianjin
~400 km from the mill, shipped worldwide
One word, two readings
Which “Plain” Do You Mean? We Supply Both
In trade language “plain steel grating” is used two honest ways, and both are real products off the same lines: plain surface — smooth, unserrated bar tops — and plain steel — bare black mill steel with no coating. This page covers the material side: Q235B mild steel, plain top, with black or hot-dip galvanized finish options.
| Dimension | Plain top, coated or black | Plain black, uncoated | If you meant anti-slip |
|---|---|---|---|
| What “plain” describes | The walking surface — smooth bar tops without serrated teeth | The finish — bare mill steel, no zinc, no paint | Neither — serrated teeth are the opposite of a plain top |
| What you receive | Smooth bar grating in Q235B or stainless, black, HDG or painted | Plain style grating supplied as-welded, oiled and strapped for export | Serrated-tooth panels for wet or oily zones |
| Corrosion plan | Hot-dip galvanizing (ASTM A123 / ISO 1461) quoted on request | Coated on site by your fabricator — weldable, paintable, no zinc layer to grind | Usually galvanized; teeth keep grip under water film |
| Typical buyer | Platform, walkway and tread specifiers choosing a smooth floor | Steel fabricators building panels into painted structures; maintenance stock | Outdoor stairs, plant floors with oil or frost |
| Base material | Q235B carbon steel standard · SS304 / SS316 optional | Q235B carbon steel — the classic “black steel” mild grade | Same Q235B range, serrated bar profile |
| Write in your RFQ | “Plain top, HDG” or “plain top, black” | “Plain black, uncoated, mill finish” | “Serrated top” |
Not sure which reading your project needs? Send your drawings — we will spec it inside the 24-hour quote.
Material & finish
Q235B Bar, Smooth Top, Black or Hot-Dip Galvanized

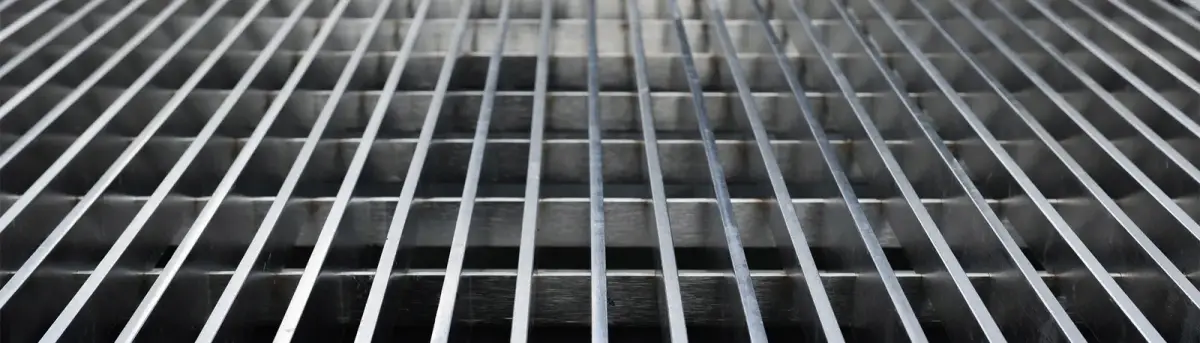

1 · Plain-top Q235B bar
Smooth bar grating starts as Q235B mild steel flat bar, 20×3 mm to 100×8 mm. The unserrated top wipes clean, drains debris and rides flat underfoot — the default interior surface.
2 · Welded into panels
Bearing bars and cross bars are electro-forged at every intersection on our in-house line, then cut and banded to your drawings — a plain style grating panel with no clips to work loose.

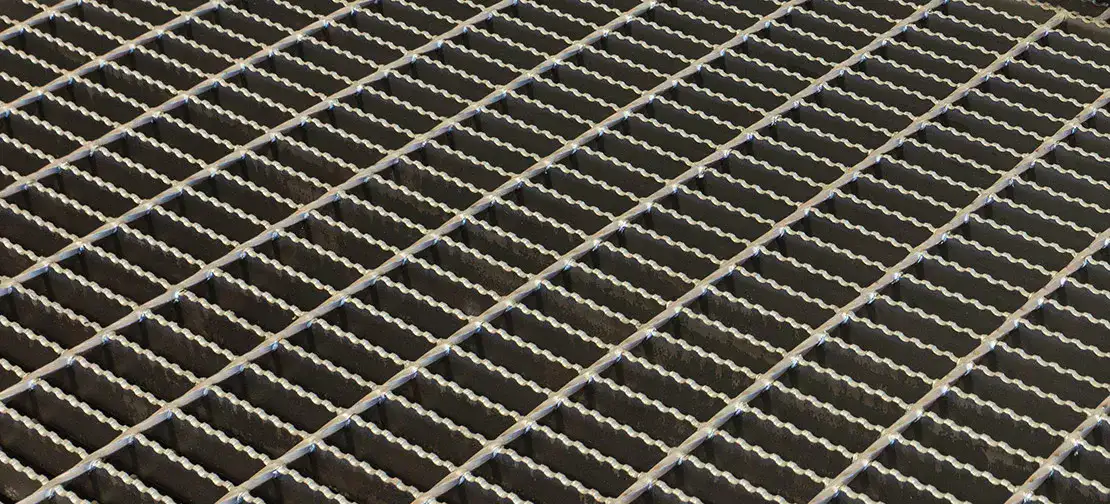

3 · Black or hot-dip galvanized
Leave the plain steel bare for site welding and painting, or send it to a certified galvanizing partner for ASTM A123 / ISO 1461 HDG — typically 2–3 days, already counted inside your production window.
Why source it here
Why Buyers Source Plain Steel Grating From Our Mill
Mill made, factory direct
A grating factory, not a trading desk — plain panels welded on our own lines and quoted FOB Tianjin. Export documentation and packing handled in-house.
Custom sizes, any quantity
19W4 stock equivalents or fully custom dimensions, cut and banded to your drawings. Small trial orders welcome; samples ship in 5–7 working days.
Specs with papers behind them
Load and weight tables provided with your quote, plus a mill test certificate to EN 10204 Type 3.1 on every Q235B order. Certified & tested, reports on request.
Applications
Where Plain Steel Grating Works
A smooth mild-steel floor suits dry and interior duty — and when the same panel goes outdoors, hot-dip galvanizing takes over the corrosion side.
Interior platforms & mezzanines
Smooth bar grating for dry plant floors where snow, ice and oil are absent.
Trench & pit covers
Plain black panels fabricated into frames and coated as part of your structure.
Interior stair treads
Plain-top treads for escape and service stairs inside protected buildings.
Fabrication stock
Uncoated Q235B panels welded, notched and painted inside your fabrication.
Specifications
Plain Steel Grating Specifications
| Parameter | Range |
|---|---|
| Bearing bar | 20×3 mm to 100×8 mm, plain (smooth) top |
| Bar spacing | 30 / 40 / 60 mm centers |
| Cross bar | Twisted square or round, per specification |
| Panel width | Up to 1.25 m |
| Panel length | Up to 6 m |
| Base material | Q235B carbon steel · SS304 / SS316 optional |
| Finish | Black (uncoated) or hot-dip galvanized (ASTM A123 / ISO 1461) |
| Stock designation | 19W4 and custom equivalents |
Full size-by-size load and unit-weight tables are provided with your quote — sized to your spans, not published as a fixed chart.
Materials & test documents
Every heat of Q235B enters production with its mill test certificate verified at goods-in — the first of our five QC stages. Plain steel leaves with documentation, not promises:
- Mill test certificate to EN 10204 Type 3.1 for Q235B, SS304 or SS316
- Factory inspection report with every shipment
- Declaration of Conformity prepared per order destination
Standards & compliance
Produced to Recognized Standards — Documents on Request
ANSI / NAAMM MBG 531
Welded plain panels produced to MBG 531 reference practice, with weld inspection on our five-stage QC plan.
ASTM A123 / ISO 1461 HDG
When plain steel goes galvanized, coating thickness is checked by sampling on every batch before panels are released.
CE & SGS tested
Certified & tested, reports on request — we show documents you can verify, not a certificate wall.
Custom made
Custom Plain Panels, Cut and Banded to Your Drawings
Send your drawing
Panel sizes, bar spacing, surface (plain or serrated), finish (black or HDG), quantities — or just photos and a sketch. Drawing review is free.
Quote within 24 hours
Itemized, FOB Tianjin as standard — EXW or CIF on request. Small trial orders welcome.
Samples in 5–7 days, production in 15–25
Working days after drawing confirmation, hot-dip galvanizing included. Installation drawings and fixing layout ship with the order.
Factory-direct quote
Get a Factory Quote
Ask for plain steel grating specs — factory engineers reply within 24 hours, free drawing review included.
- Five-stage QC, from MTC verification at goods-in to final inspection
- DoC, MTC EN 10204 3.1 and inspection report with every order
- Factory audits welcome — see the lines before you commit
Prefer to talk? WhatsApp us or sales@dtsteelladder.com
Request your quote
Five fields — we do the rest.
FAQ
Frequently Asked Questions
What does plain mean in plain steel grating?
Buyers use the word two ways. Plain can mean a smooth, unserrated walking surface, or it can mean uncoated black mill steel. We supply both readings — write plain top, plain black, or plain top plus hot-dip galvanizing in your quote request and we match it.
Can plain grating be hot-dip galvanized?
Yes. Plain-top panels in Q235B go to a certified galvanizing partner for ASTM A123 / ISO 1461 hot-dip galvanizing, typically 2–3 days, already counted inside the 15–25 working-day production window.
What documents ship with plain steel grating?
Every order leaves with a mill test certificate to EN 10204 Type 3.1, a factory inspection report and a Declaration of Conformity prepared for your destination. Certified and tested, reports on request.
