Factory-direct steel gratings & stair treads, shipped worldwide
Bar Grating Manufacturer
Work direct with the factory. Flexible scheduling, fast answers.
Itemized quote within 24 hours · Free drawing review included
In-house forming lines
Electro-forging and press-locking under one roof
Certified & tested
Reports on request, MTC with every order
Samples in 5–7 days
Production in 15–25 working days
FOB Tianjin
Shipped worldwide, EXW / CIF negotiable
Verify the maker
Manufacturer or Middleman? Six Checks Before You Commit
Plenty of bar grating "manufacturers" online are desks, not mills. A real bar grating manufacturer can answer six simple questions on the spot — here is what we answer, honestly, including what leaves our workshop.
| Check | What to ask | What a mill answers |
|---|---|---|
| Forming | Which machines form the panel? | Named processes run in-house: electro-forging for welded bar grating, press-locking for close mesh |
| Inspection | Who checks the panels, and where? | Five documented QC stages in our own workshop, from MTC verification at goods-in to final inspection |
| Paper trail | Do certificates ship with the goods? | MTC EN 10204 Type 3.1 and a factory inspection report with every shipment |
| Access | Can we see the workshop? | Factory audits welcome — walk the lines in person or by video call |
| First order | Will you take a small trial order? | Yes — small trial orders on bar grating, then full containers calculated per loading plan |
| Outsourcing | What is done outside your walls? | Hot-dip galvanizing runs at a certified partner plant nearby — stated plainly, counted in the lead time |
Put us through these checks yourself: send your drawings and see what a 24-hour answer from the mill looks like.
Inside the mill
What "Manufacturer" Means at Dengtai
Bar grating is formed, checked and packed in our own workshop in Shijiazhuang, Hebei. Two forming approaches cover almost every specification we quote — and we tell you plainly which one your panels need.
1 · Electro-forging line
Bearing bars and cross bars are assembled, then every intersection is resistance-forged under pressure in one pass — a single solid panel with no clips that can loosen. Runs in-house for the bulk of welded bar grating.
2 · Press-lock line
For close-mesh bar grating, cross bars are mechanically pressed into notched bearing bars — no weld heat, so panels stay dead flat down to 11 / 11 mm openings.
3 · Galvanizing partner
Hot-dip galvanizing to ASTM A123 / ISO 1461 runs at a certified partner plant close to the mill — typically 2–3 days, already counted inside your production window. We say so because a maker that hides it is hiding other things.
Five-Stage QC on Every Order
Goods-in, MTC verified
Mill test certificates are checked heat by heat before steel enters production.
First-article check
The first panel off the line is measured in full before the order runs.
Joint inspection
Weld points get full visual coverage with sampling against ANSI / NAAMM MBG 531 practice.
Coating checks
Galvanized thickness is sampled on every galvanized batch before release.
Final inspection & report
Dimensions, banding and packing are signed off; the report ships with the goods.
Audit files on demand
Ask for the paperwork trail of a live order — or come see the stages yourself. Request audit files →
Why work direct
Meet Your Bar Grating Mill — Three Reasons to Skip the Middleman
Bar grating from the mill
Factory-direct FOB Tianjin quotes, itemized line by line. Small trial orders on bar grating let you test the mill before full containers.
Quick-reply grating mill
Quotes land within 24 hours with free drawing review. Flexible scheduling when your program shifts — you talk to the people at the machines.
One-stop grating factory
Welded, press-locked, stair treads and stainless under one roof — four product lines, one vendor file, one paperwork trail from RFQ to bill of lading.
Product range
One Factory, Four Grating Lines
A bar grating manufacturer earns the title by what it can form itself. These four lines all come off our own floor — carbon steel or stainless, black or galvanized.

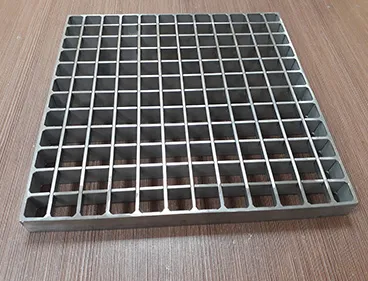

Welded bar grating
Electro-forged panels, 19W4 stock specs or custom — the workhorse line.
View line →Press-locked grating
Close mesh down to 11 / 11 mm for trench covers and facades.
View line →Stair treads
Welded or press-locked treads, banded, with serrated or plain surfaces.
View line →Stainless grating
SS304 / SS316 for food, chemical and marine duty, MTC traceable.
View line →Specifications
Bar Grating Specifications from the Mill
| Parameter | Range |
|---|---|
| Bearing bar | 20×3 mm to 100×8 mm, plain or serrated |
| Bar spacing | 30 / 40 / 60 mm centers; press-locked close mesh to 11 / 11 mm |
| Cross bar | Twisted square or round, per specification |
| Panel width | Up to 1.25 m |
| Panel length | Up to 6 m |
| Materials | Q235B carbon steel · SS304 / SS316 stainless |
| Surface | Black or hot-dip galvanized (ASTM A123 / ISO 1461) |
| Designations | 19W4 stock specs and custom equivalents |
Materials & test documents
Every heat of Q235B, SS304 or SS316 enters our line with its mill test certificate verified at goods-in — the first of five QC stages. Panels leave with documentation, not promises:
- Mill test certificate to EN 10204 Type 3.1, traceable to heat numbers
- Factory inspection report with every shipment
- Declaration of Conformity prepared per order destination
- Audit files on demand — see how a live order ran
Verification & documents
Trust a Manufacturer You Can Check Up On
Factory audits welcome
Visit the workshop in Jingxing Mining District, Shijiazhuang, or walk the lines by video call — audits are welcome before you place a cent of steel on order.
MTC & DoC with every order
EN 10204 Type 3.1 certificates trace every panel to its heat; a Declaration of Conformity is prepared per destination market, free with the shipment.
Certified & tested
CE and SGS tested, reports on request — we share documents you can verify with the issuing bodies, not a certificate wall.
Made at the mill
Custom Bar Grating, Cut and Banded to Your Drawings
Send your drawing
Panel sizes, load specs, quantities — or just photos and a sketch. Drawing review is free.
Quote within 24 hours
Itemized, FOB Tianjin as standard — EXW or CIF on request. The workshop sits roughly 400 km from Tianjin Port, so export-ready bar grating moves fast.
Samples in 5–7 days, production in 15–25
Working days after drawing confirmation, hot-dip galvanizing included. Installation drawings and fixing layout ship with the order.
Vet us as your mill
Vet Us as Your Bar Grating Mill
Quote in 24 hours, samples in 5–7 days — send panel sizes and quantities, or ask for audit files with your reply.
- Five-stage QC, from MTC verification at goods-in to final inspection
- DoC, MTC EN 10204 3.1 and inspection report with every order
- Factory audits welcome — see the lines before you commit
Prefer to talk? WhatsApp us or sales@dtsteelladder.com
Contact the mill
Five fields — we do the rest.
FAQ
Frequently Asked Questions
Can we audit the factory before ordering?
Yes — factory audits are welcome. You can walk the forming lines, watch the five-stage QC checks and review mill test certificates on site or by video call. Audit files are shared on demand.
Are you a manufacturer or a trading company?
Dengtai Staircase Manufacturing Co., Ltd. is a manufacturer. Bar grating panels are formed, checked and packed in our own workshop in Shijiazhuang, China; hot-dip galvanizing runs at a certified partner plant nearby and is counted inside the production window.
What is the minimum order for bar grating?
Small trial orders are welcome — a common way to vet the mill before larger volumes. Full-container orders are calculated per loading plan. Samples ship in 5–7 working days and production runs 15–25 working days after drawing confirmation.
